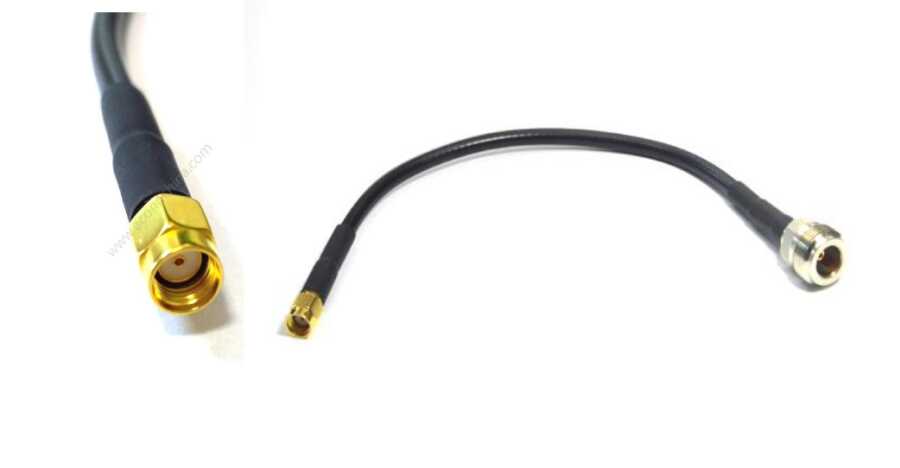

HELIUM HNT CABLE 3 MT. N FEMALE TO RPSMA MALE

Technical Specifications
Brand ACONN
Cable Type LMR200 cable
Cable Length 3M
Connector Interface RP-SMA IEC 60169-15
N IEC 60169-16
Connector Gender
Body Style Straight
Connector Impedance 50 ohm
Body Brass Plating Au(SMA)
Brass Plating Nickel(N)
Insulator PTFE
Center Conductor Phosphor Bronze/Brass Plating Au(SMA)
Brass Plating Au(N)
Dielectric Withstanding Voltage 1000V RMS,50Hz,at sea level
Dielectric Resistance ≥5000MΩ
Frequency Range DC-6000MHz
VSWR ≤1.30(DC~2500MHz)
≤1.50(DC~6000MHz)
Durability Mating Cycles ≥500
Temperature Range -40°C～+85
