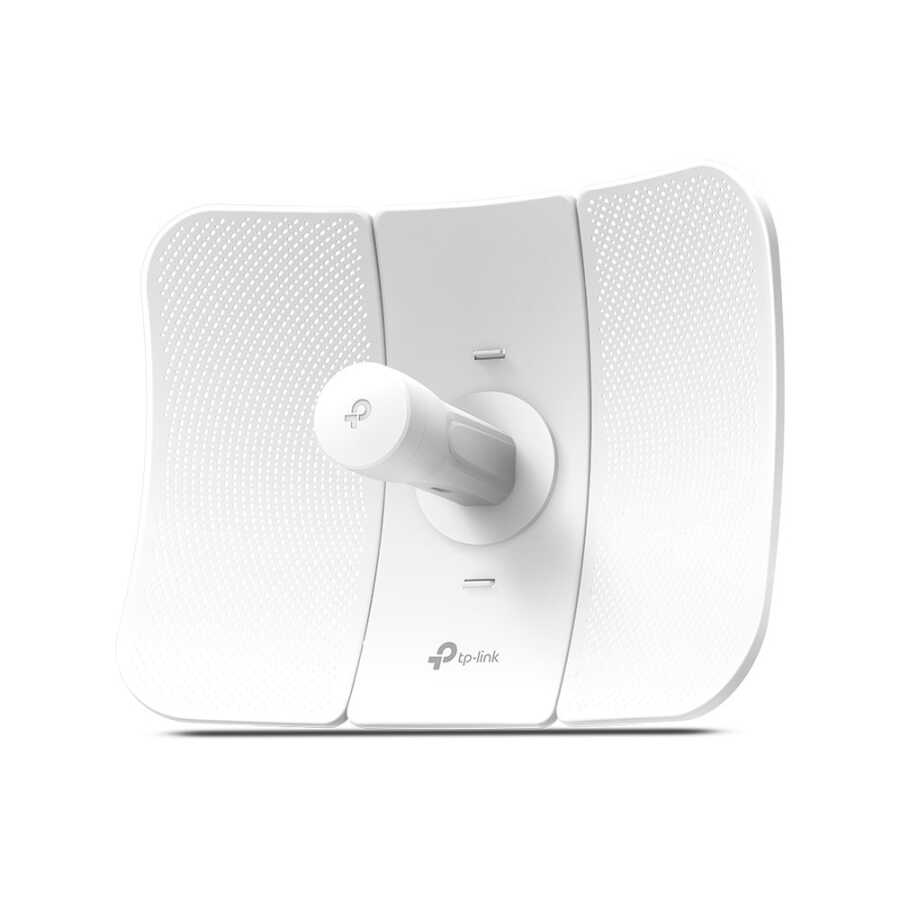

5GHz AC 867Mbps 23dBi Outdoor CPE
• 802.11ac 5GHz kablosuz veri hızında 867Mbps'ye kadar
• 23dBi yüksek kazançlı yönlü 2 × 2 MIMO, uzun mesafeli uygulamalar için ideal
• Mükemmel ışın yönlendirmesi, gelişmiş gecikme süresi ve gürültü önleme

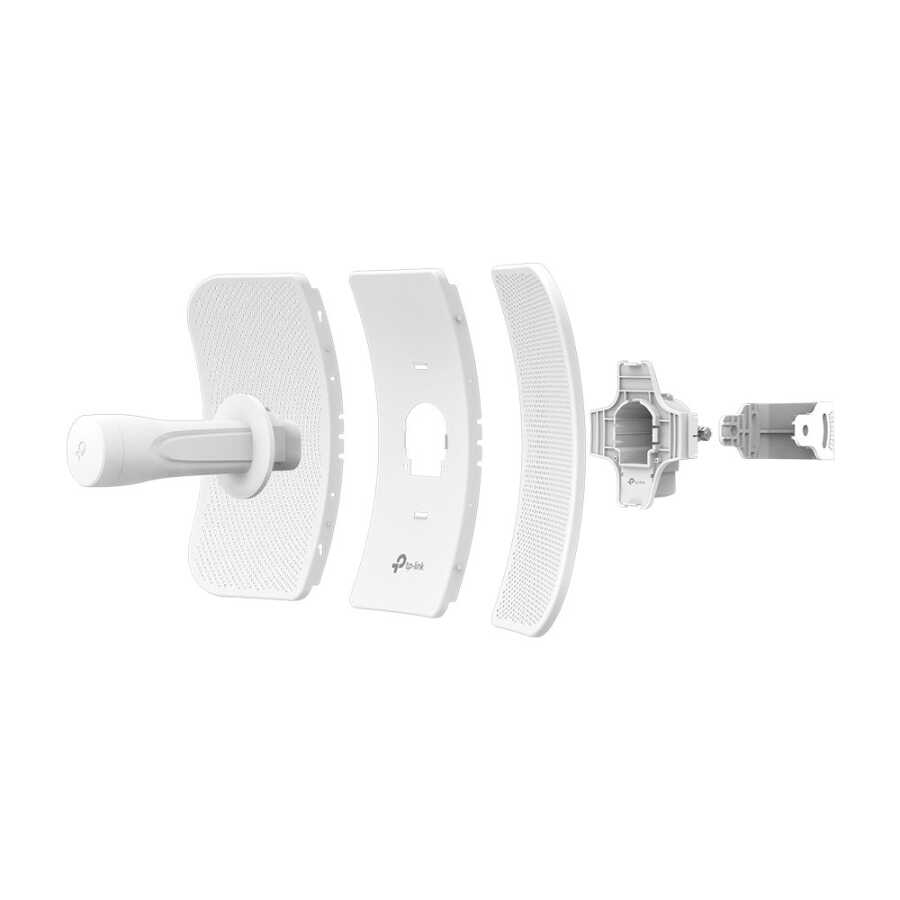

• Yenilikçi geçmeli parçalar hızlı montaj sağlar ve sağlam yapısal tasarım güçlü rüzgarlarda bile CPE710'u sabit tutar
• 15kV ESD ve 6kV yıldırımdan korunma ile birlikte dayanıklı IP65 hava koşullarına dayanıklı muhafaza, tüm hava koşullarına uygunluk sağlar
• Pharos Control yöneticilere ücretsiz, merkezi bir yönetim sistemi sunar
• Esnek kurulum ve rahat kurulum için pasif PoE destekleri
| DONANIM ÖZELLİKLERİ |
| İşlemci |
Qualcomm 750MHz CPU, MIPS 74Kc |
| Bellek |
128 MB DDR2 RAM, 16 MB Flash |
| Arabirim |
1 10/100/1000 Mbps Shielded Ethernet Port (LAN/POE)
1 Reset Button |
| Güç Kaynağı |
Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)
Voltage range: 16-27V DC |
| Boyutlar ( W X D X H ) |
366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.) |
| Anten Kazancı |
23 dBi |
| Anten Beamwidth |
9° (Azimuth)/7° (Elevation) |
| Koruma |
15 KV ESD Protection
6 KV Lightning Protection |
| Muhafaza |
Material: Outdoor PC stabilized plastic
Weatherproof: IP65 water and dust proof design |
| KABLOSUZ ÖZELLİKLERİ |
| Kablosuz Standartlar |
IEEE 802.11a/n/ac |
| Kablosuz Hızı |
Up to 867 Mbps (80 MHz, Dynamic)
Up to 400 Mbps (40 MHz, Dynamic)
Up to 173.4 Mbps (20 MHz, Dynamic) |
| Frekans |
5.15~5.85 GHz |
| İletim Gücü |
Max. 27 dBm (Adjustable power by 1dBm) |
| YAZILIM ÖZELLİKLERİ |
| Ağ Yapılandırma |
WAN: Static/ Dynamic/ PPPoE
LAN: Static/ Dynamic/ DHCP
Forwarding: ALG/ UPnP/ Virtual Server/ Port Trigger
Security: SPI Firewall/ Ping Forbidden/ DoS Protection
Access Control
Static Routing
Bandwidth Control
IP & MAC Binding |
| Kablosuz Konfigürasyonlar |
Selectable Channel Width: 20/40/80MHz
Auto Channel Selection
Transmit Power Control
Dynamic Frequency Selection(DFS)
WDS Enable/ Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption,
SSID Broadcast Enable/ Disable
Multi-SSID with VLAN Tagging(AP Mode only)
Distance/ ACK Timeout Setting
Wireless MAC Address Filter
Wireless Advanced:
Beacon Interval/ RTS Threshold/ Fragmentation Threshold/ DTIM Interval/ AP Isolation/ Short GI/ Wi-Fi Multimedia
Long Range PtP |
| Yönetim |
Discovery and Remote Management via Pharos Control application
HTTP/ HTTPS Web-based management
System log
SNMP Agent(v2c)
Ping Watch Dog
Dynamic DDNS
SSH Server |
| Sistem Araçları |
Indicators:Signal Strength/ Noise/ Transmit CCQ/ CPU/ Memory
Monitors: Throughput/ Stations/ Interfaces/ ARP/ Routes/ WAN/ DHCP
Spectrum Analyzer
Speed Test
Ping
Traceroute
Antenna Alignment |
| Sistem Düzeyindeki Optimizasyonlar |
Optimized IGMP Snooping / Proxy for multicast applications |
| POE ADAPTÖR ÖZELLİKLERİ |
| Boyutlar (H X W X D) |
85.8×43.9×29.7 mm |
| Arayüzler |
1 AC Jack with Earth Ground
1× 10/100/1000 Mbps Shielded Ethernet Port (Power + Data)
1× 10/100/1000 Mbps Shielded Ethernet Port (Data) |
| Buton |
Remote Reset Button |
| Güç Durum LEDleri |
Green |
| Giriş |
100-240VAC, 50/60Hz |
| Çıkış |
24VDC, 0.5A Max
+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet) |
| Verimlilik |
>84.29% |
| Sertifikalar |
CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark |
| DİĞERLERİ |
| Sertifika |
CE, FCC, RoHS, IP65, IC |
| Paket İçeriği |
Outdoor Wireless CPE
24V 0.5A Passive PoE Adapter
Pole Mounting Kits
AC Power Cord
Installation Guide |
| Sistem Gereksinimleri |
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended. |
| Ortam |
Operating Temperature: -40℃~70℃ (-40℉~158℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing |
