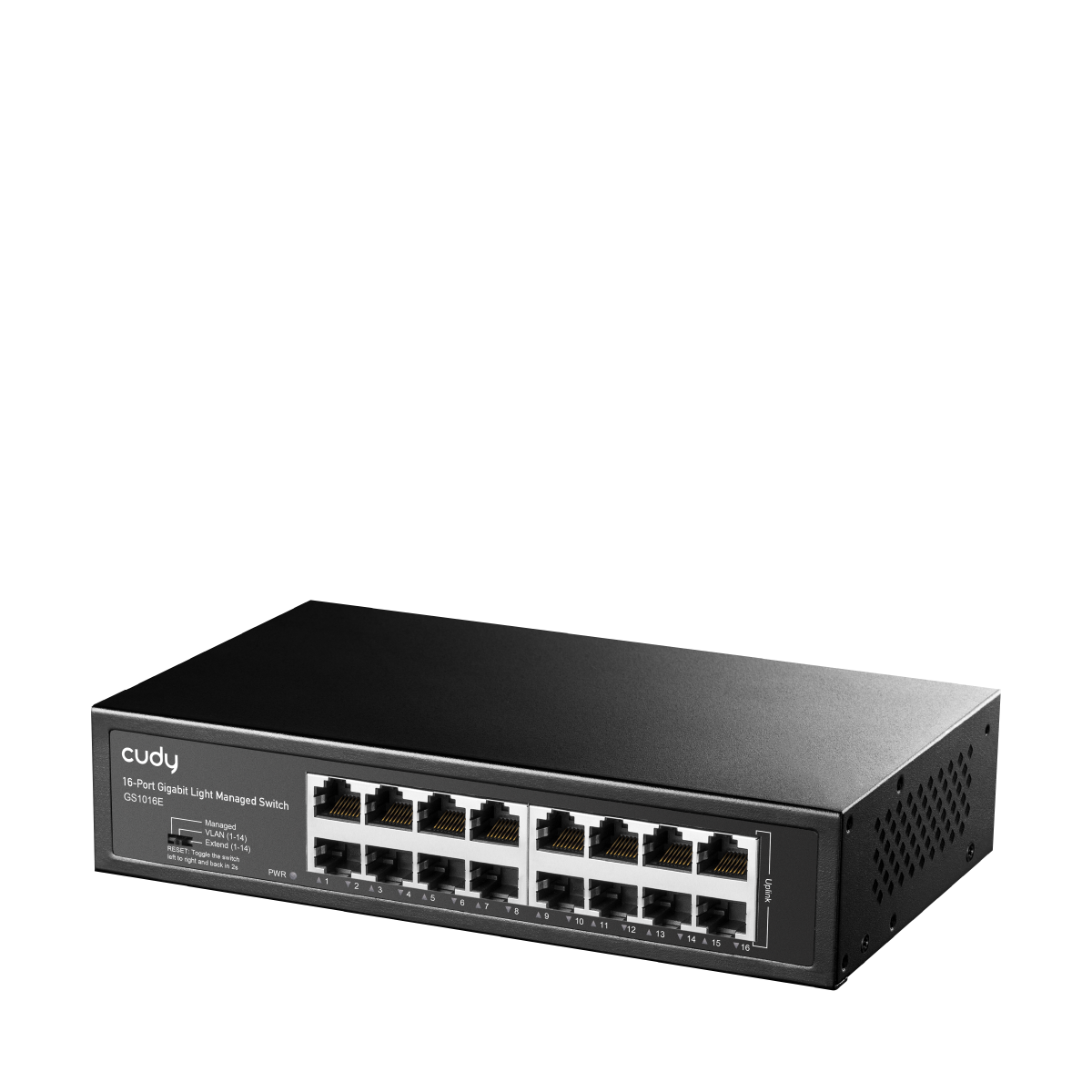

CUDY GS1016 - 16-Port Gigabit Metal Switch

CUDY GS1016 16-Port Gigabit Metal Switch
Overview:
The CUDY GS1016 3.0 is an unmanaged 16-port Gigabit switch with a fanless metal chassis, designed for office networks, mall Wi-Fi infrastructure, surveillance systems and ISP FTTB deployments. Its physical DIP switch provides Default/VLAN/Extend modes for client isolation or copper transmission extended up to 250 m.
Description:
The GS1016 3.0 combines 16× Gigabit RJ45 interfaces with 32 Gbps switching capacity, 23.808 Mpps forwarding rate and an 8192-entry MAC address table. A 4 Mbit packet buffer and 15 KB jumbo frame support help manage packet delivery under dense local traffic. As an unmanaged device, it does not require an operating system such as RouterOS or UniFi OS; core L2 functions and DIP switch modes are delivered in hardware.

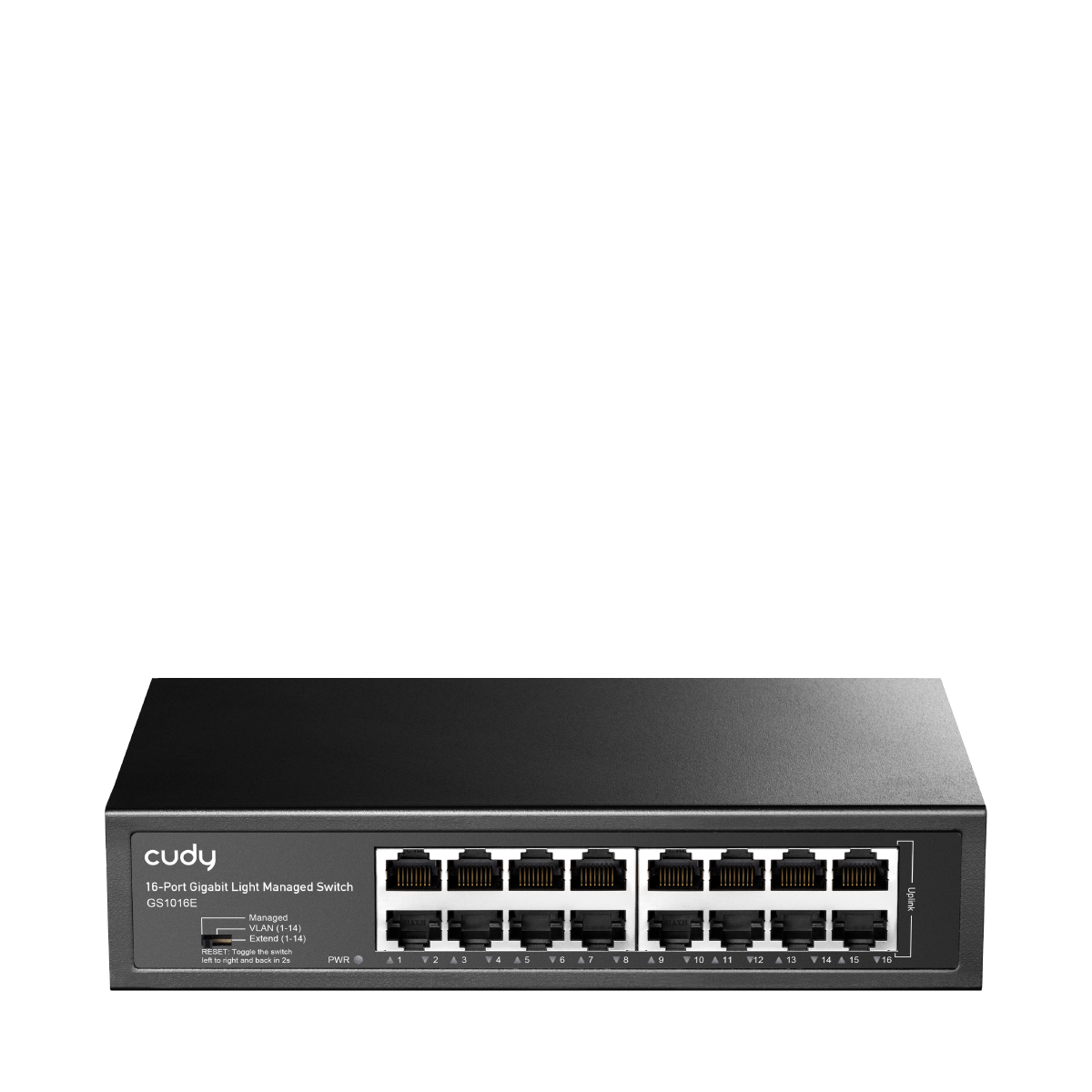

The front-panel VLAN/Default/Extend DIP switch selects three operating modes. In VLAN mode, downlink ports 1-14 can communicate only with uplink ports; in Extend mode, the same ports support transmission distances up to 250 m with speed capped at 10 Mbps. IGMP Snooping forwards multicast traffic to the relevant ports, while Loop Prevention and Loop Detection automatically block ports when a loop is detected. DSCP and 802.1p QoS prioritize higher-priority packets.
The fanless metal casing supports deployment in noise-sensitive environments and ships with brackets for standard 1U rack mounting. The 90-260V~ AC input, 7.8W maximum power consumption and 4.5W idle power consumption suit office, retail, surveillance and ISP FTTB installations. Desktop or rackmount installation is supported; the package includes the switch, power cord, installation guide and mounting kit.
Key Highlights:
- Unmanaged switch with 16× Gigabit RJ45 ports
- Selectable Default/VLAN/Extend DIP switch; VLAN mode isolates ports 1-14 to uplink communication
- Extend mode provides up to 250 m transmission on ports 1-14 at 10 Mbps
- 32 Gbps switching capacity and 23.808 Mpps forwarding rate
- IGMP Snooping, Loop Prevention/Detection, DSCP and 802.1p QoS
- Fanless metal chassis; desktop or 1U rackmount installation
Technical Specifications:
| Parameter | Value |
|---|---|
| Manufacturer | CUDY |
| Model | GS1016 3.0 |
| Product Group | Gigabit Switch |
| Ports | 16× Gigabit RJ45 |
| Extend Mode Ports | 1-14 |
| VLAN Mode Ports | 1-14 |
| Physical Controls | VLAN/Default/Extend DIP Switch |
| LED Indicators | Power; Speed/Link/Act per Ethernet port |
| Max Copper Speed and Distance | Cat.3+ 100 m @10 Mbps; Cat.5+ 100 m @100 Mbps; Cat.5e+ 100 m @Gigabit; Cat.5e+ 250 m @10 Mbps on Extend Mode ports |
| Max Switching Capacity | 32 Gbps |
| Max Forwarding Rate | 23.808 Mpps |
| MAC Address Table | 8192 |
| Jumbo Frame | 15 KB |
| Packet Buffer | 4 Mbit |

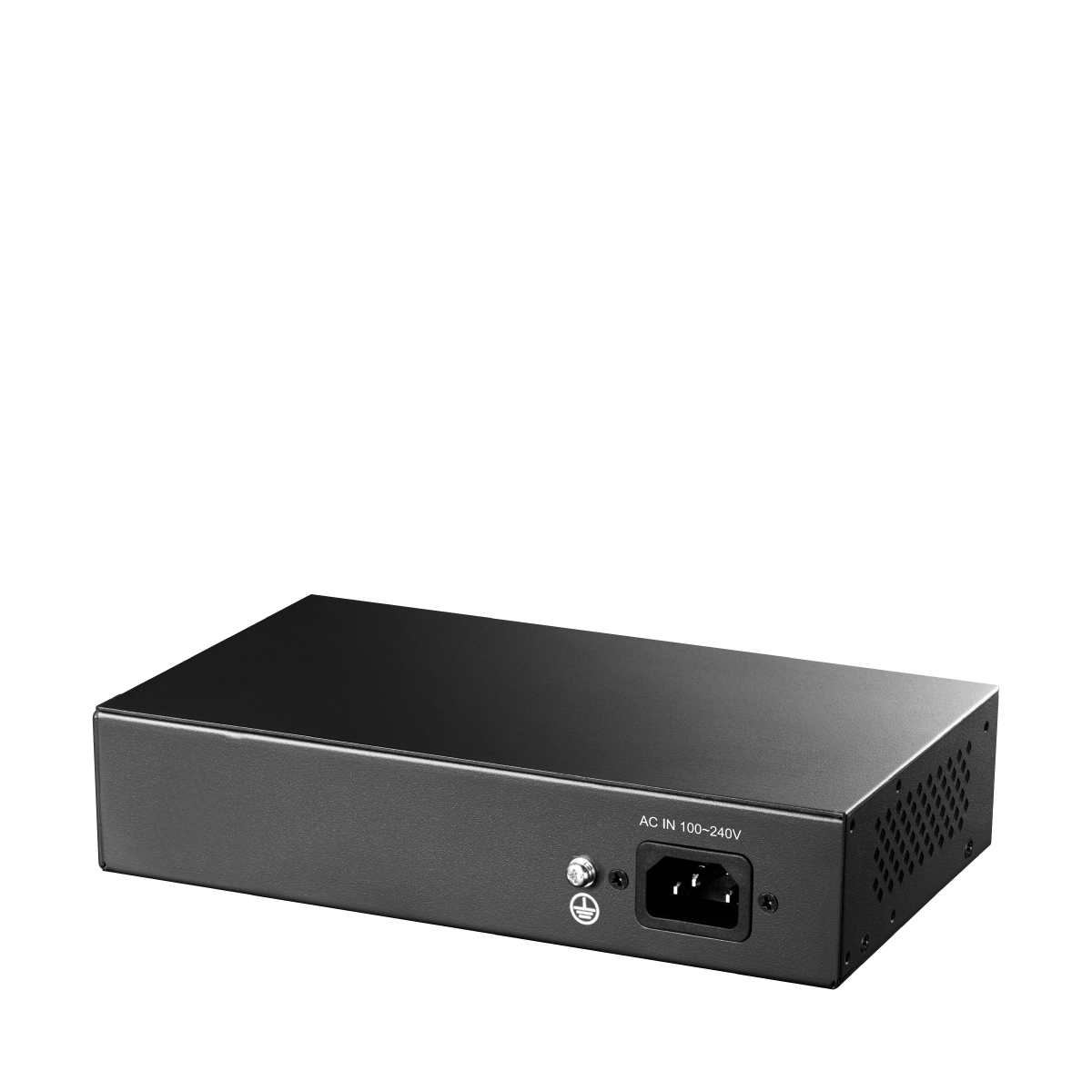

| Power Input Type | AC Inlet |
| Power Input | 90-260V~ 50/60Hz |
| Max Power Consumption | 7.8W |
| Idle Power Consumption | 4.5W |
| L2 Features | IGMP Snooping, Loop Prevention, Loop Detection, DSCP QoS, 802.1p QoS |
| 802.3 Protocols | 802.3x Flow Control, 802.3i 10BASE-T, 802.3u 100BASE-TX, 802.3ab 1000BASE-T |
| 802.1 Protocols | 802.1p LAN Layer 2 QoS/CoS |
| Grounding Methods | Three-prong plug; grounding point |
| Operating Temperature | 0 °C ~ 40 °C |
| Storage Temperature | -40 °C ~ 70 °C |
| Operating Humidity | 10% ~ 90% non-condensing |
| Storage Humidity | 5% ~ 90% non-condensing |
| Dimensions | 200×118×44 mm |
| Weight | 619 g |
| Casing Material | Metal |
| Cooling | Fanless |
| Installation | Desktop; rackmount via brackets |

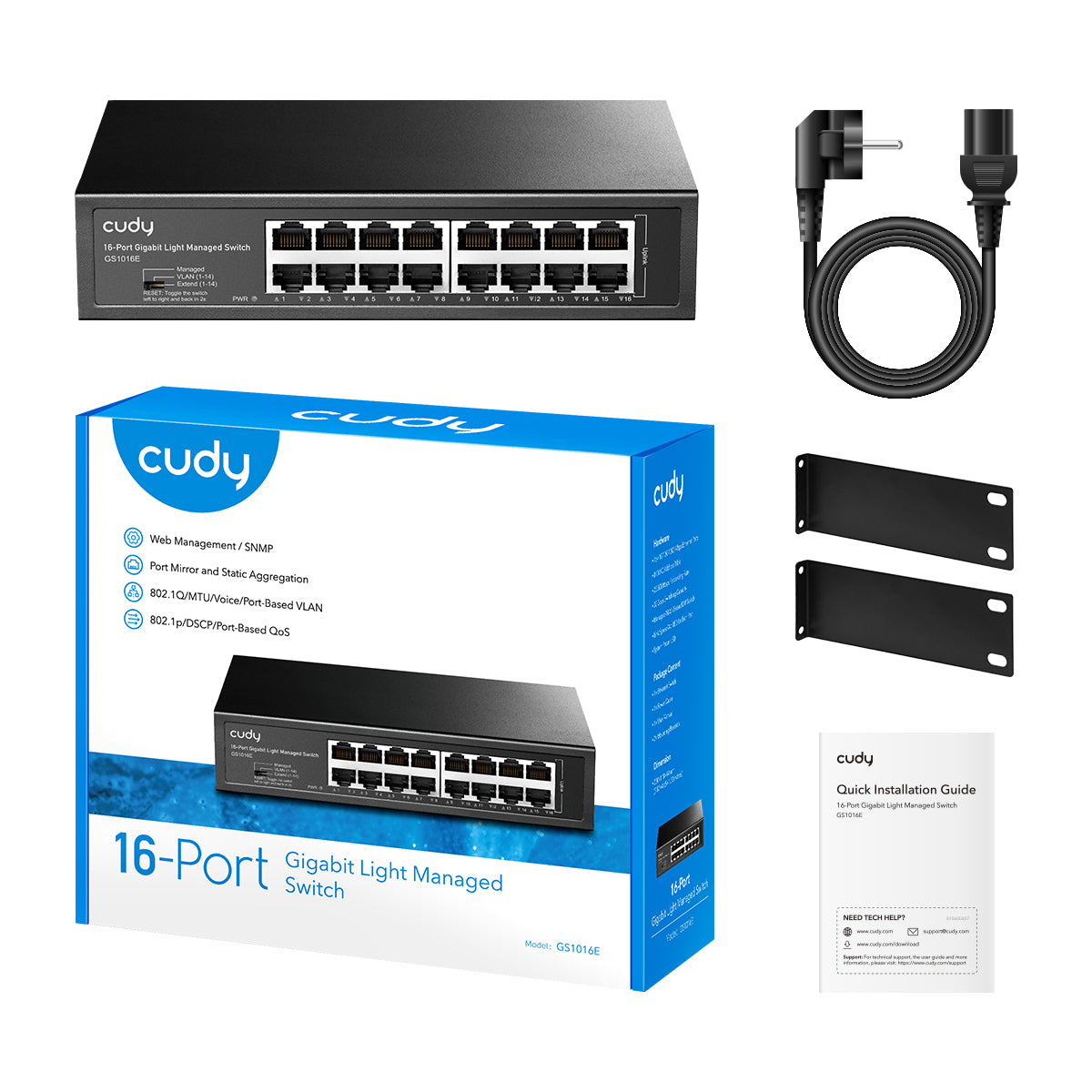

| Package Contents | GS1016, power cord, installation guide, mounting kit |
