CUDY M1200 (2-Pack) - AC1200 Wi-Fi Mesh Solution

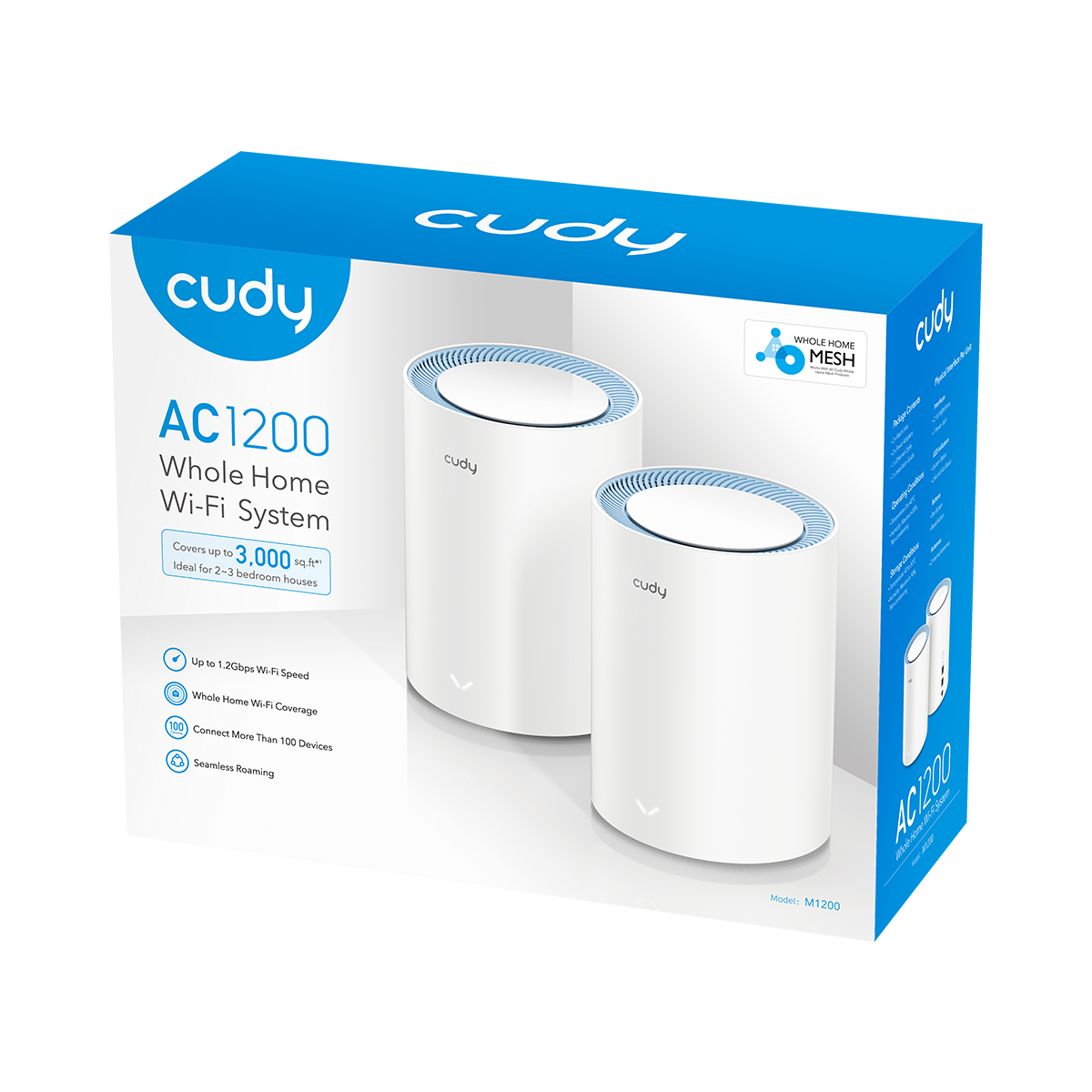

CUDY M1200(2-Pack) AC1200 Wi-Fi Mesh System
Overview: The CUDY M1200(2-Pack) is a two-unit AC1200 dual-band mesh Wi-Fi system designed for coverage up to 3,000 sq.ft. It can be deployed in homes, small offices, and WISP environments using Wi-Fi Router, Access Point, Wi-Fi Extender, or WISP modes.
Description: The M1200(2-Pack) is a two-unit AC1200 mesh Wi-Fi system built on Cudy Whole Home Mesh technology. Mesh units link through wireless connections and optional Ethernet backhaul to deliver coverage up to 3,000 sq.ft, and additional units can be added when more coverage is needed.
Each unit provides 2 internal omni-directional antennas, 1 × 10/100 Mbps WAN port, 1 × 10/100 Mbps LAN port, Pair and Reset buttons, and a 12 V / 1 A external power supply. It delivers 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz, with 128 MB DDR and 16 MB Flash.
Software features include VPN server and client support (PPTP/L2TP/OpenVPN/WireGuard/IPSec/Zerotier), DDNS, guest networks, NAT, IPv6, and remote management. Wi-Fi Router, Wireless Access Point, Wi-Fi Extender, and WISP working modes support flexible deployment in homes, small offices, and WISP environments.
Key Highlights:
- AC1200 dual-band: 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz; up to 1.2 Gbps Wi-Fi speed.
- Two-unit pack with mesh coverage up to 3,000 sq.ft; optional Ethernet backhaul support.
- 2 × internal omni-directional antennas and seamless roaming support.
- 1 × 10/100 Mbps WAN + 1 × 10/100 Mbps LAN.
- VPN server/client: PPTP, L2TP, OpenVPN, WireGuard, IPSec, Zerotier.
- Wi-Fi Router, Access Point, Wi-Fi Extender, and WISP working modes.
Technical Specifications:
| Parameter | Value |
|---|---|
| Manufacturer | CUDY |
| Model | M1200 |
| Product Group | Indoor Access Point |
| Package | 2-Pack AC1200 Mesh Router |
| Coverage | Up to 3,000 sq.ft |
| Wireless Standards | IEEE 802.11ac/n/a 5 GHz; IEEE 802.11n/b/g 2.4 GHz |
| Frequency | 5 GHz, 2.4 GHz |
| Signal Rate | 867 Mbps (5 GHz), 300 Mbps (2.4 GHz); AC1200 |
| Antennas | 2 × Internal Omni-Directional Antennas |
| WAN Interface | 1 × 10/100 Mbps WAN Port |
| LAN Interface | 1 × 10/100 Mbps LAN Port |
| Buttons | Pair, Reset |
| External Power Supply | 12 V / 1 A |
| Flash | 128 Mbit (16 MB) |
| DDR | 1 Gbit (128 MB) |
| Transmit Power | CE: <20 dBm (2.4 GHz), <23 dBm (5.15–5.25 GHz); FCC: <30 dBm (2.4 GHz & 5.15–5.825 GHz) |
| Wireless Security | WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Working Modes | Wi-Fi Router / Wireless Access Point / Wi-Fi Extender / WISP |
| VPN | PPTP / L2TP / OpenVPN / WireGuard / IPSec / Zerotier (Server & Client) |
| WAN Type | DHCP; Dynamic IP / Static IP / PPPoE |
| Guest Network | 2.4 GHz guest network × 1; 5 GHz guest network × 1 |
| NAT | Port Forwarding, Port Triggering, UPnP, DMZ |
| Management | Access Control, Local Management, Remote Management, Wake on LAN |
| CWMP | TR069 / TR098 / TR111 / TR181 |
| ACS Compatibility | GenieACS, OpenACS |
| DDNS | Compatible with 15+ DDNS providers |
| DNS | Cloudflare / Google / NextDNS / Custom |
| IPv6 | Relay; Dynamic (SLAAC/DHCPv6); Static (Fixed IP); Passthrough; MAP-E (Dual-stack); DS-Lite (Dual-stack) |
| Package Contents | 2-Pack AC1200 Mesh Router, Power Adapter, RJ45 Ethernet Cable, Quick Installation Guide |
