CUDY M1300 (1-Pack) - AC1200 Wi-Fi Gigabit Mesh Solution

CUDY M1300 AC1200 Gigabit Mesh Wi-Fi System (1-Pack)
Overview: The CUDY M1300 is an AC1200 dual-band mesh Wi-Fi system designed for large homes, SMBs, and offices. The 1-pack can serve as a standalone access point or as an additional node to an existing Cudy Mesh network.
Description: The CUDY M1300 2.0 is powered by an 880 MHz dual-core MIPS1004Kc CPU, 128 MB DDR3 RAM, and 16 MB NOR flash storage. It features four internal antennas and delivers 2x2 dual-band Wi-Fi 5 (802.11ac) speeds of up to 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz. Antenna gain is 6.04 dBi for 5 GHz and 4.22 dBi for 2.4 GHz. The device includes two Gigabit RJ45 ports; by default, Port 1 is WAN and the other is LAN, and in mesh satellite mode all ports function as LAN.
Cudy Mesh technology, multi-band simultaneous backhaul, fast roaming, MU-MIMO, and beamforming ensure a seamless and high-performance wireless network. VPN server and client capabilities provide secure remote access. Network management is simplified via the Cudy App and cloud control. Parental controls allow Wi-Fi time scheduling and content filtering.
Key Highlights:
- 4-stream dual-band Wi-Fi 5: 867 Mbps (5 GHz) + 300 Mbps (2.4 GHz)
- 2× Gigabit Ethernet ports (WAN/LAN auto)
- Cudy Mesh, VPN server and client support
- MU-MIMO and beamforming
- Fast roaming
- Cudy App and cloud control
Technical Specifications:
| Parameter | Value |
|---|---|
| Manufacturer | CUDY |
| Model | M1300 2.0 |
| Product Group | Indoor Access Point |
| CPU | 880 MHz Dual-Core, MIPS1004Kc |
| RAM | 128 MB DDR3 |
| Flash | 16 MB NOR |
| 5 GHz Wi-Fi Speed | 867 Mbps |
| 2.4 GHz Wi-Fi Speed | 300 Mbps |
| Wi-Fi Antennas | 4× Internal |
| 5 GHz Antenna Gain (Max) | 6.04 dBi |
| 2.4 GHz Antenna Gain (Max) | 4.22 dBi |
| 5 GHz Wi-Fi Streams | 2 Spatial Streams |
| 2.4 GHz Wi-Fi Streams | 2 Spatial Streams |
| FEM/PA/LNA | 5 GHz: 2× Internal; 2.4 GHz: 2× Internal |
| Gigabit RJ45 Ports | 2 |
| Physical Buttons | WPS, Reset |
| LED Indicators | System, Ethernet Speed/Link/ACT |
| Power Input | 12V⎓1A |
| Power Adapter (In Box) | Input: 100-240V~, 50/60Hz; Output: 12V⎓1A |
| Dimensions | Φ110×154.5 mm |
| Weight | 298 g |
| Installation | Desktop |
| Operating Temperature | 0 ℃ ~ 40 ℃ |
| Storage Temperature | -40 ℃ ~ 70 ℃ |
| Operating Humidity | 10% ~ 90% non-condensing |
| Storage Humidity | 5% ~ 95% non-condensing |
| Wireless Range (Max) | 170 m (open space) |
| Wall Performance | 2 wooden walls (<10 cm) + 1 concrete wall (<20 cm) |
| Certifications | FCC, CE |

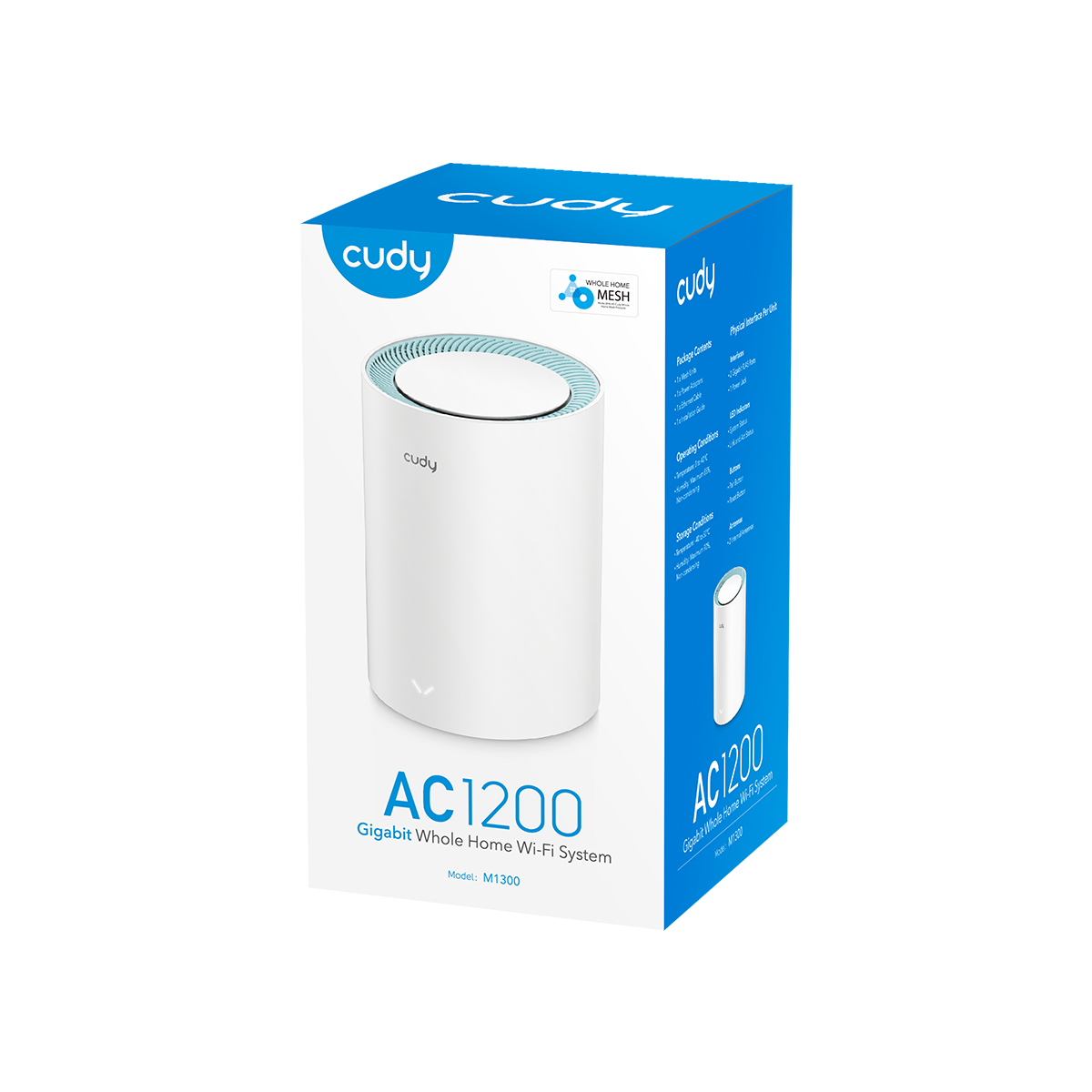

| Package Contents | M1300, Power Adapter, Ethernet Cable, Installation Guide |
| Retail Package Dimensions (1-Pack) | 145×130×265 mm |
| Retail Package Weight (1-Pack, EU) | 672 g |
