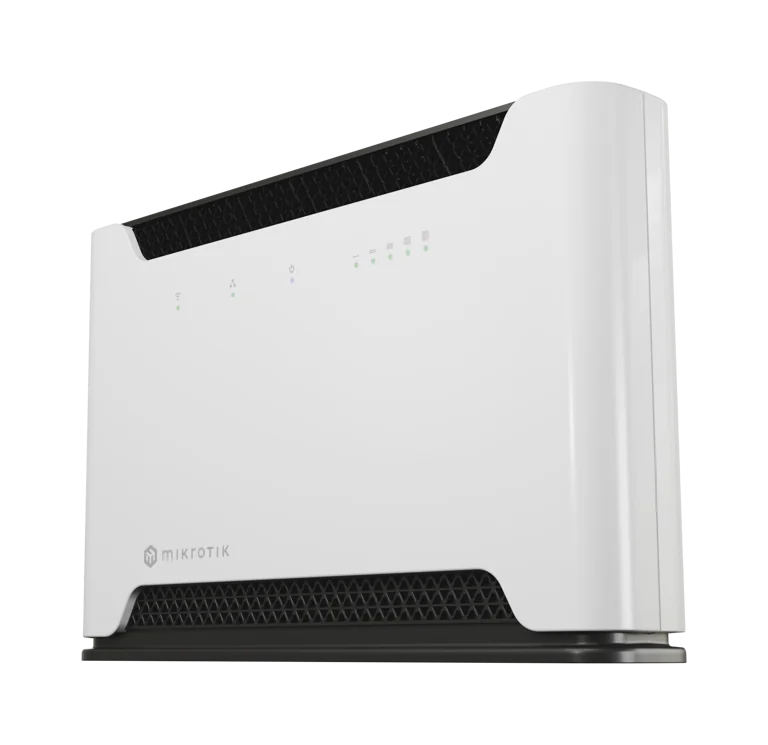

MikroTik Chateau 5G R16 5G Router (D53G-5HacD2HnD-TC&RG520F-EU)

MikroTik Chateau 5G R16 D53G-5HacD2HnD-TC&RG520F-EU 5G/LTE Wireless Router
Overview: The Chateau 5G R16 is a dual-band wireless router with 5x Gigabit Ethernet ports, delivering ultra-fast 5G mobile internet for home and office environments. It is ideal for WISPs, SMBs, and field deployments, and is designed for secure remote work VPNs and high-speed connectivity applications.
Description: The MikroTik Chateau 5G R16 is powered by a quad-core ARM IPQ-4019 CPU (4 cores, 4 threads, 448-896 MHz auto frequency) and 256 MB RAM. It runs RouterOS v7 on 16 MB FLASH storage. Passive cooling ensures silent operation, and it delivers reliable performance in harsh environments from -40°C to 70°C.
The device offers extensive connectivity options with 5x Gigabit Ethernet ports, 1 Micro SIM slot, 1 USB Type-A port, and 1 M.2 slot. It supports numerous FDD and TDD bands in 5G NSA and SA modes for carrier-independent high-speed mobile connectivity. It is also backward compatible with 3G and LTE Cat20. Dual-band wireless delivers up to 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz.
RouterOS v7 provides enterprise-grade features such as advanced routing, firewall, VPN (IPsec, WireGuard), and queue management. Container support allows you to run applications like PiHole and HomeAssistant directly on the router. IPsec VPN performance reaches up to 424.5 Mbps in a single tunnel, making it ideal for secure remote access. The Chateau 5G R16 is a high-performance, reliable, and cost-effective solution for both home offices and field deployments.
Key Highlights:
- Quad-core ARM IPQ-4019 CPU (4 cores, 4 threads, 448-896 MHz)
- 5G NSA/SA, LTE Cat20, and 3G support
- 5x Gigabit Ethernet ports
- Dual-band Wi-Fi: 2.4 GHz (300 Mbps) and 5 GHz (867 Mbps)
- RouterOS v7, container support, and IPsec VPN
- Passive cooling, -40°C to 70°C operating temperature
Technical Specifications:
| Parameter | Value |
|---|---|
| Manufacturer | MikroTik |
| Model | D53G-5HacD2HnD-TC&RG520F-EU |
| Product Group | Indoor Wireless Products |
| Architecture | ARM 32bit |
| CPU | IPQ-4019 |
| CPU Core Count | 4 |
| CPU Frequency | 448-896 (auto) MHz |
| CPU Threads | 4 |
| Switch Chip Model | IPQ-4019 |
| Dimensions | 240 x 156 x 44 mm |
| RouterOS License | 4 |
| Operating System | RouterOS v7 |
| RAM | 256 MB |
| Storage Size | 16 MB |
| Storage Type | FLASH |
| MTBF | Approximately 200,000 hours at 25°C |
| Tested Ambient Temperature | -40°C to 70°C |
| DC Inputs | 1 (DC jack) |
| DC Jack Input Voltage | 12-28 V |
| Max Power Consumption | 25 W |
| Max Power Consumption (without attachments) | 20 W |
| Cooling Type | Passive |
| 3G Category | R8 (42.2 Mbps Downlink, 5.76 Mbps Uplink) |
| LTE Category | 20 (2.0 Gbps Downlink, 200 Mbps Uplink) |
| LTE FDD Bands | 1 (2100MHz), 3 (1800MHz), 5 (850MHz), 7 (2600MHz), 8 (900MHz), 20 (800MHz), 28 (700MHz), 32 (1500MHz) |
| LTE TDD Bands | 38 (2600MHz), 40 (2300MHz), 41 (2500MHz), 42 (3500MHz), 43 (3700MHz) |
| 5G NSA FDD Bands | 1, 3, 5, 7, 8, 20, 28 |
| 5G NSA TDD Bands | 38, 40, 41, 75, 76, 77, 78 |
| 5G SA FDD Bands | 1, 3, 5, 7, 8, 20, 28 |
| 5G SA TDD Bands | 38, 40, 41, 75, 76, 77, 78 |
| Wireless 2.4 GHz Max Data Rate | 300 Mbit/s |
| Wireless 2.4 GHz Chains | 2 |
| Wireless 2.4 GHz Standards | 802.11a/b/g/n |
| Wireless 2.4 GHz Antenna Gain | 3 dBi |
| Wireless 2.4 GHz Generation | Wi-Fi 4 |
| Wireless 5 GHz Max Data Rate | 867 Mbit/s |
| Wireless 5 GHz Chains | 2 |
| Wireless 5 GHz Standards | 802.11a/n/ac |
| Wireless 5 GHz Antenna Gain | 5.5 dBi |
| Wireless 5 GHz Generation | Wi-Fi 5 |
| 10/100/1000 Ethernet Ports | 5 |
| SIM Slots | 1 (Micro SIM) |
| USB Ports | 1 |
| USB Power Reset | Yes |
| USB Slot Type | USB Type-A |
| Max USB Current | 1 A |
| M.2 Slots | 1 |
| Mode Button | Yes |
| Certification | CE, EAC, ROHS |
| IP Rating | IP20 |
| IPsec VPN Performance (single tunnel, AES-128-CBC+SHA1, 1400 byte) | 424.5 Mbps |
