MikroTik LtAP LTE6 kit LTE Outdoor Router (LtAP-2HnD&FG621-EA)

MikroTik LtAP-2HnD&FG621-EA LTE6 Kit / IP54 LTE Access Point
Overview: The MikroTik LtAP-2HnD&FG621-EA is an IP54-rated LTE access point for vehicle, field, and logistics deployments, combining LTE Cat6 connectivity, GPS support, and RouterOS v7 management. Flexible power inputs and expansion slots make it suitable for fleet tracking, mobile field networks, and remote-site connectivity.

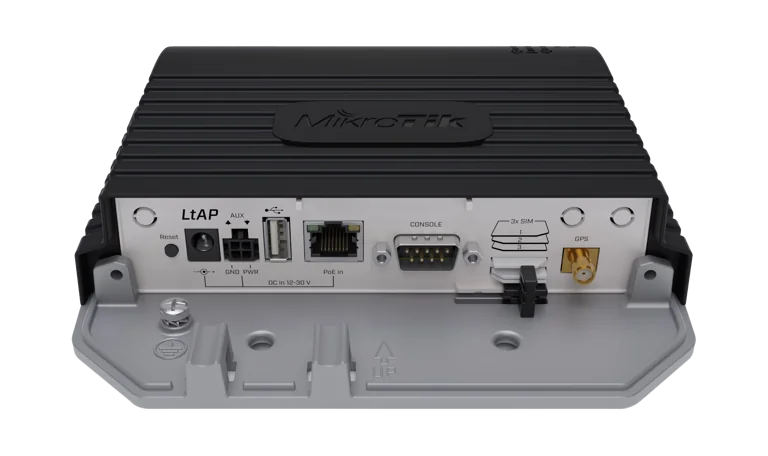

Description: The LtAP-2HnD&FG621-EA is built on the MMIPS architecture with an 880 MHz MT7621AT CPU, 2 cores and 4 threads, 128 MB RAM, and 16 MB FLASH storage. It ships with RouterOS v7 and RouterOS license 4. A single 10/100/1000 Ethernet port, RS232 serial console, and USB Type-A port support local networking, management, and peripheral connectivity in field installations. The IP54-rated enclosure, passive cooling, and tested ambient temperature range of -40°C to +70°C target demanding outdoor and vehicle environments.
For mobile connectivity, the Cat6 LTE modem provides up to 300 Mbps downlink and 50 Mbps uplink, with carrier aggregation for using two bands simultaneously. Supported LTE FDD bands are B1/B3/B5/B7/B8/B20/B28, and LTE TDD bands are B38/B40/B41. Three MiniSIM slots allow automatic roaming scenarios between operators. Two internal LTE antennas can be supplemented via U.FL connectors for external antennas; GPS requires an external antenna connected through SMA.
The device includes two miniPCI-e slots: one is occupied by the LTE modem, and the other is available for expansion such as a 5 GHz interface or a second LTE modem. Power options include a DC jack, passive PoE-in, and an automotive connector; DC jack and passive PoE operate from 12-30 V, while the automotive input supports 12-27 V. Maximum power consumption is 24 W, or 12 W without attachments. This makes the LtAP-2HnD&FG621-EA suited to vehicle-mounted connectivity, mobile field networks, logistics/tracking, and remote-site deployments.
Key Highlights:
- LTE Cat6 modem: 300 Mbps downlink and 50 Mbps uplink with carrier aggregation support.
- Three MiniSIM slots for automatic roaming scenarios between mobile operators.
- Two miniPCI-e slots: one for the LTE modem, one for expansion such as 5 GHz or a second LTE modem.
- IP54-rated enclosure, passive cooling, and tested ambient temperature range of -40°C to +70°C.
- Three power inputs: DC jack, passive PoE-in, and automotive connector.
- RouterOS v7, 1 GbE port, RS232 serial console, USB Type-A, and GPS support.
Technical Specifications:
| Parameter | Value |
|---|---|
| Manufacturer | Mikrotik |
| Model | LtAP-2HnD&FG621-EA |
| Product Group | Mikrotik Accessories |
| Architecture | MMIPS |
| CPU | MT7621AT, 2 cores / 4 threads, 880 MHz |
| RAM | 128 MB |
| Storage | 16 MB FLASH |
| Operating System | RouterOS v7 |
| RouterOS License | 4 |
| Ethernet | 1 x 10/100/1000 |
| 2.4 GHz Wi-Fi | 802.11b/g/n, Wi-Fi 4, 2x2, 300 Mbit/s |
| 2.4 GHz Antenna Gain | 2.5 dBi |
| 2.4 GHz Wi-Fi Chip | AR9342 |
| LTE Category | Cat6 (300 Mbit/s DL, 50 Mbit/s UL) |
| LTE FDD Bands | B1 (2100 MHz), B3 (1800 MHz), B5 (850 MHz), B7 (2600 MHz), B8 (900 MHz), B20 (800 MHz), B28 (700 MHz) |
| LTE TDD Bands | B38 (2600 MHz), B40 (2300 MHz), B41 (2500 MHz) |
| 3G Category | R8 (42.2 Mbit/s DL, 11.2 Mbit/s UL) |
| 3G Bands | B1 (2100 MHz), B3 (1800 MHz), B5 (850 MHz), B8 (900 MHz) |
| MIMO | DL 2x2 / UL 1x1 |
| SIM Slots | 3 x MiniSIM |
| MiniPCI-e | 2 (1 x LTE modem, 1 x expansion) |
| GNSS | GPS |
| Serial Console | RS232 |
| USB | 1 x USB Type-A, 1 A, USB Power Reset |
| DC Inputs | 3 (DC jack, Passive PoE-in, Automotive) |
| DC Input | 12-30 V |
| Passive PoE-in | 12-30 V |
| Automotive Input | 12-27 V |
| Max Power Consumption | 24 W |
| Max Power Consumption without Attachments | 12 W |
| Cooling | Passive |
| PCB Temperature Monitor | Yes |
| Voltage Monitor | Yes |
| IP Rating | IP54 |
| Tested Ambient Temperature | -40°C to +70°C |
| MTBF | Approximately 200,000 hours at 25°C |
| Certifications | CE, E-MARK, EAC, ROHS |
| TAC | 86335904 |
