Ubiquiti UniFi Access Point U6+ (U6-Plus)

Ubiquiti U6+ UniFi Access Point
Overview:
The Ubiquiti U6+ is a UniFi access point with WiFi 6 support and 2x2 MIMO architecture, rated for 300+ concurrent clients. It combines 2.4 GHz and 5 GHz wireless coverage with a 1 GbE RJ45 port and PoE power for office, SMB, and WISP deployments.
Description:
The U6+ measures Ø160 x 33 mm and uses a polycarbonate top cover with an aluminum bottom cover. It ships with ABS and SGCC steel mounting hardware; wall or ceiling mounting is included. The unit operates from -30 to 60°C (-22 to 140°F) at 5 to 95% noncondensing humidity and carries CE, FCC, and IC certifications.
A single GbE RJ45 networking interface and Ethernet management interface are provided; power is supplied via PoE over a supported 44–57V DC range, with maximum power consumption of 9W. On the wireless side, 2.4 GHz 2x2 MIMO delivers 573.5 Mbps throughput and 5 GHz 2x2 MIMO delivers 2402 Mbps. Maximum TX power is 23 dBm on both bands, with antenna gain of 3 dBi at 2.4 GHz and 5.4 dBi at 5 GHz.
The access point supports 802.11a/b/g and WiFi 4/WiFi 5/WiFi 6 standards. Wireless security includes WPA-PSK and WPA-Enterprise (WPA/WPA2/WPA3), while 8 BSSIDs per radio, 802.1Q VLANs, per-user rate limiting, and guest traffic isolation support segmented deployments. With capacity for 300+ concurrent clients, it is suited to office and WISP environments.
Key Highlights:
- 2.4 GHz 2x2 MIMO at 573.5 Mbps and 5 GHz 2x2 MIMO at 2402 Mbps
- 1 GbE RJ45 networking interface with PoE power (44–57V DC) and 9W maximum consumption
- 23 dBm maximum TX power on both bands; 3 dBi at 2.4 GHz and 5.4 dBi at 5 GHz antenna gain
- WiFi 4/WiFi 5/WiFi 6 and 802.11a/b/g support; WPA-PSK and WPA-Enterprise (WPA/WPA2/WPA3)
- 300+ concurrent clients, 8 BSSIDs per radio, 802.1Q VLAN, and per-user rate limiting
- Wall/ceiling mount included; -30 to 60°C operating temperature and 5 to 95% noncondensing humidity
Technical Specifications:
| Parameter | Value |
|---|---|
| Manufacturer | Ubiquiti |
| Model | U6+ |
| Product Group | UniFi Access Point |

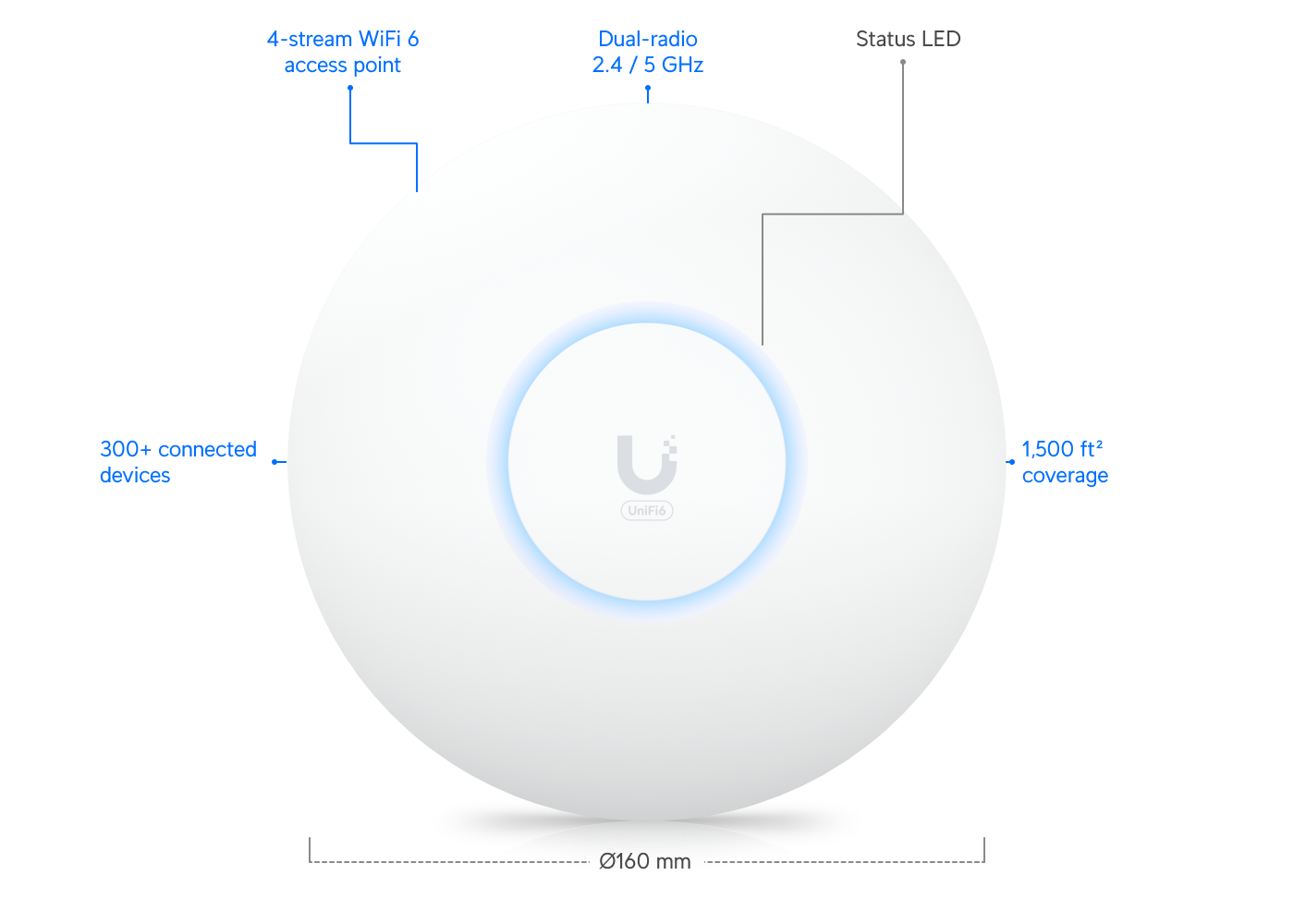

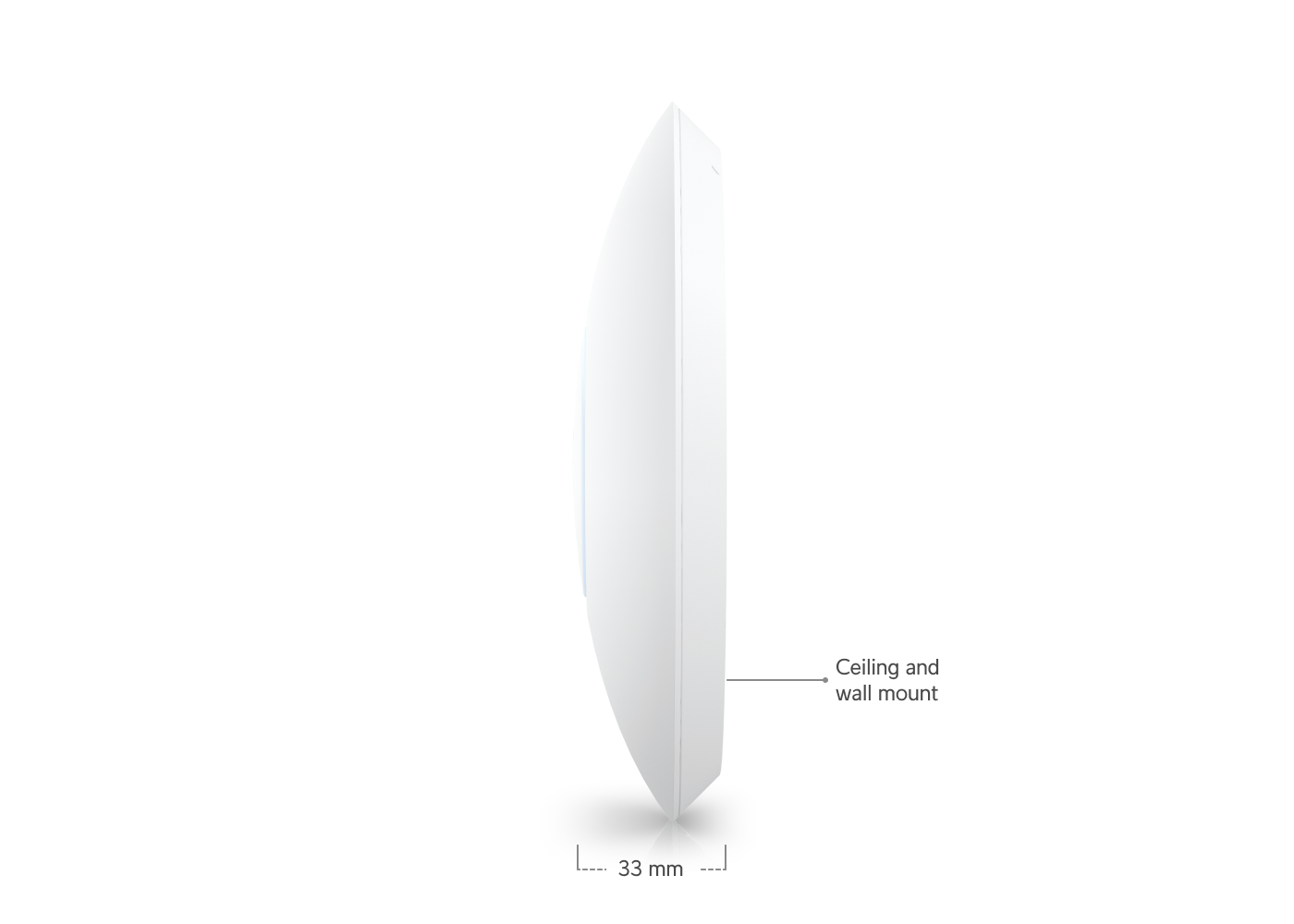

| Dimensions | Ø160 x 33 mm |
| Weight | Without mount: 338 g; with mount: 413 g |
| Enclosure Materials | Top cover: polycarbonate; bottom cover: aluminum |
| Mount Materials | ABS, SGCC steel |

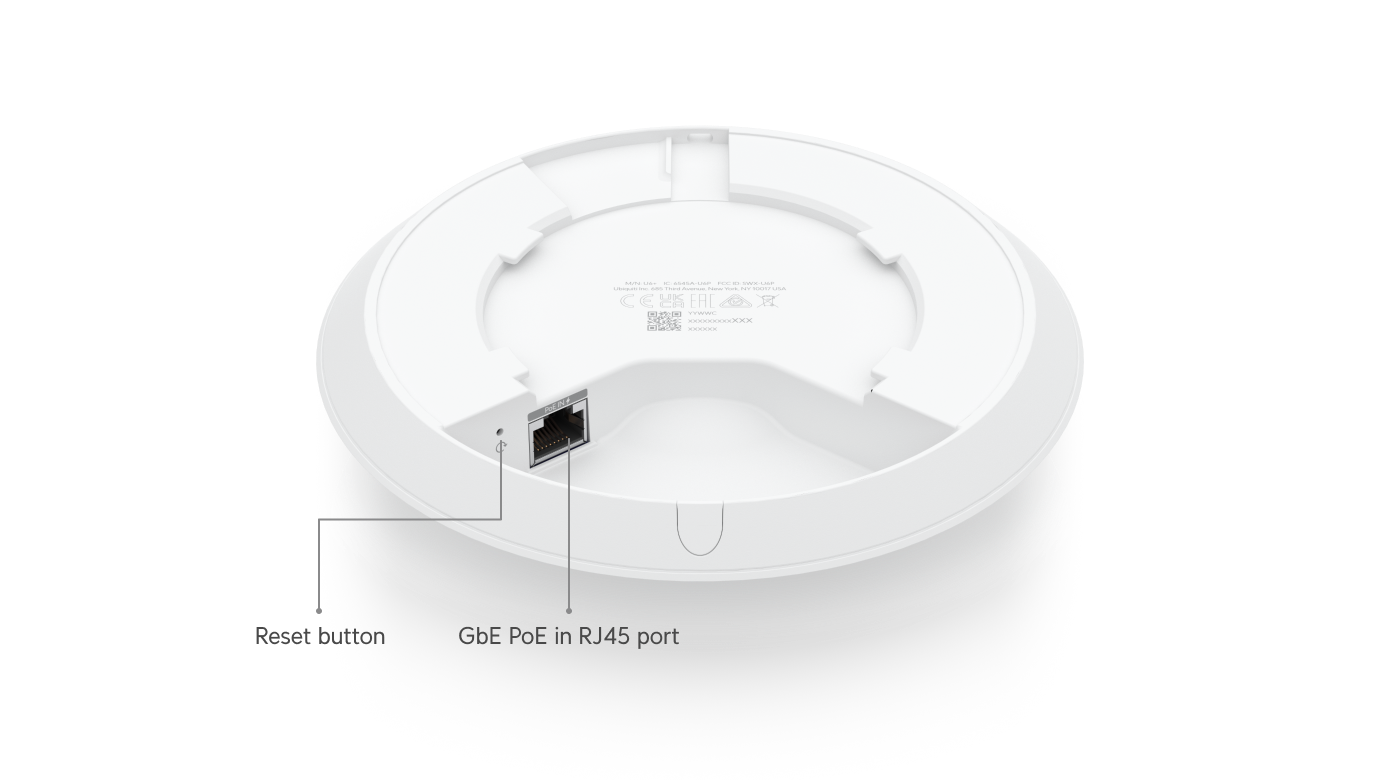

| Networking Interface | (1) GbE RJ45 port |
| Management Interface | Ethernet |
| Power Method | PoE |
| Supported Voltage Range | 44–57V DC |
| Max. Power Consumption | 9W |
| Max. TX Power | 2.4 GHz: 23 dBm; 5 GHz: 23 dBm |
| MIMO | 2.4 GHz: 2 x 2; 5 GHz: 2 x 2 |
| Throughput Rate | 2.4 GHz: 573.5 Mbps; 5 GHz: 2402 Mbps |
| Antenna Gain | 2.4 GHz: 3 dBi; 5 GHz: 5.4 dBi |
| LED | White/blue |
| Button | Factory reset |
| Mounting | Wall/ceiling (included) |
| Operating Temperature | -30 to 60°C (-22 to 140°F) |
| Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| WiFi Standards | 802.11a/b/g; WiFi 4/WiFi 5/WiFi 6 |
| Wireless Security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest Traffic Isolation | Supported |
| Concurrent Clients | 300+ |
