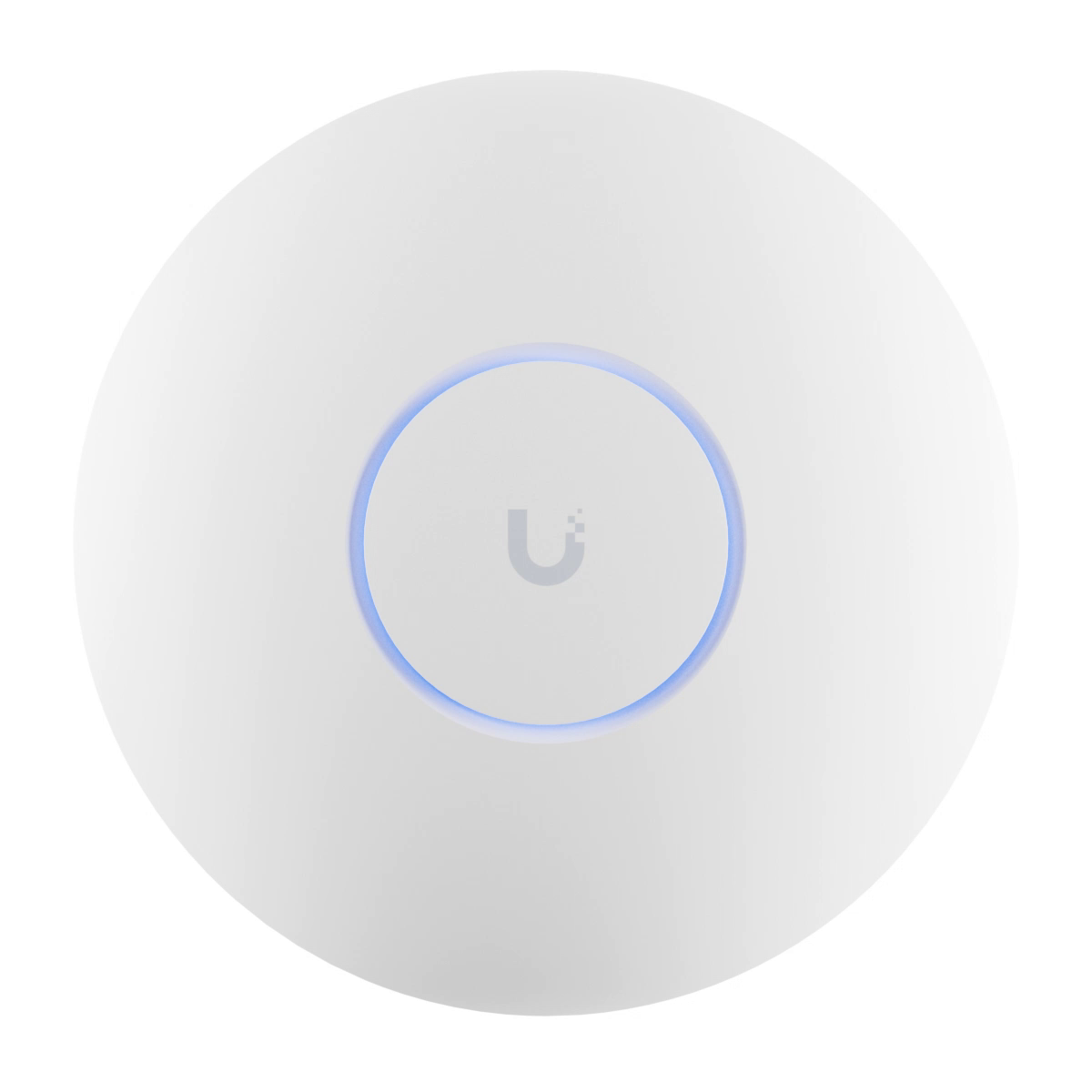

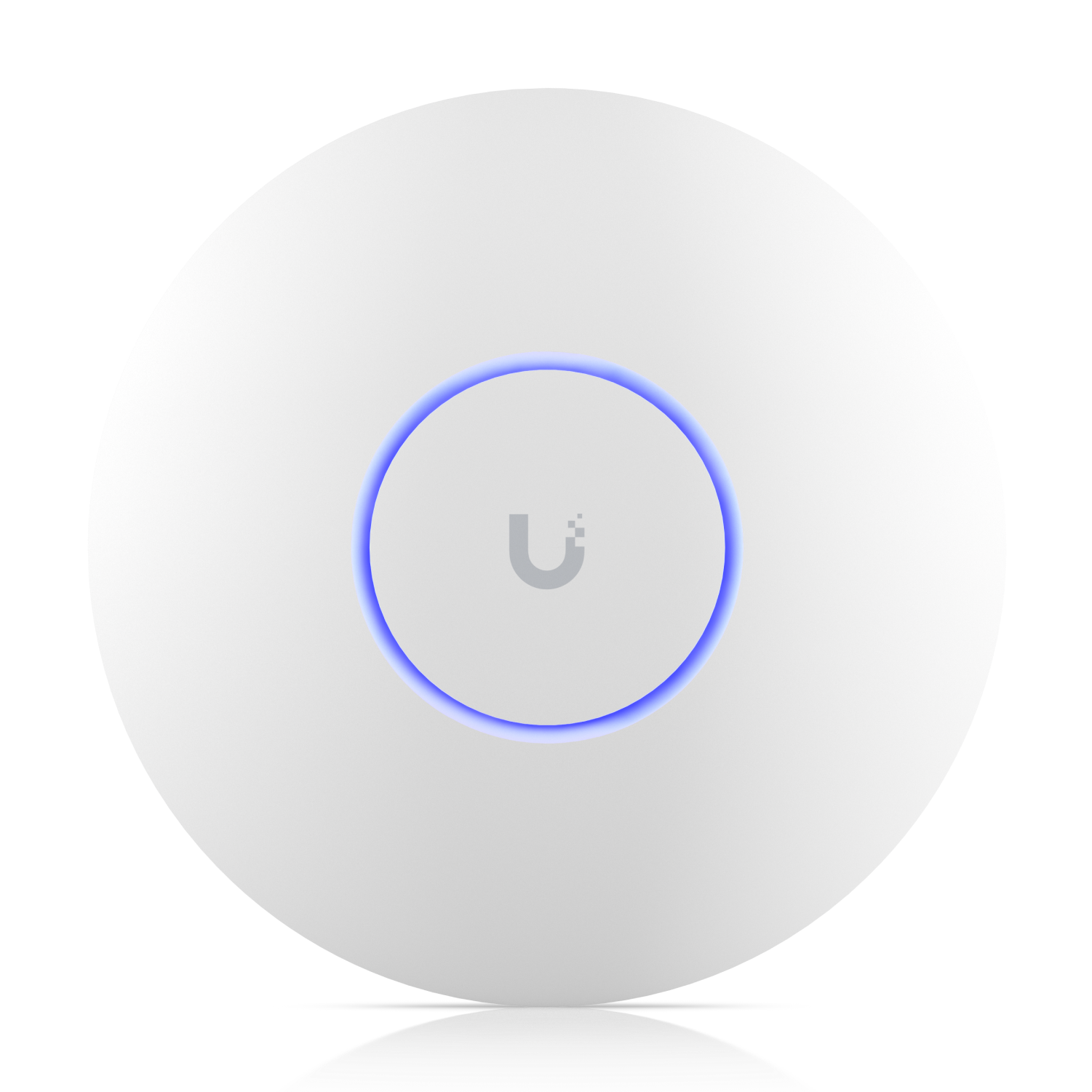

Ubiquiti UniFi Access Point U6 Enterprise (U6-Enterprise)

Ubiquiti U6-ENTERPRISE UniFi Access Point
Overview:
The U6-ENTERPRISE is a UniFi access point designed for multi-band wireless access including 6 GHz, with a 2.5GbE uplink and PoE+ power for WISP, SMB, office and campus deployments. It supports 600+ concurrent clients and 4x4 MU-MIMO to serve dense wireless environments.
Description:

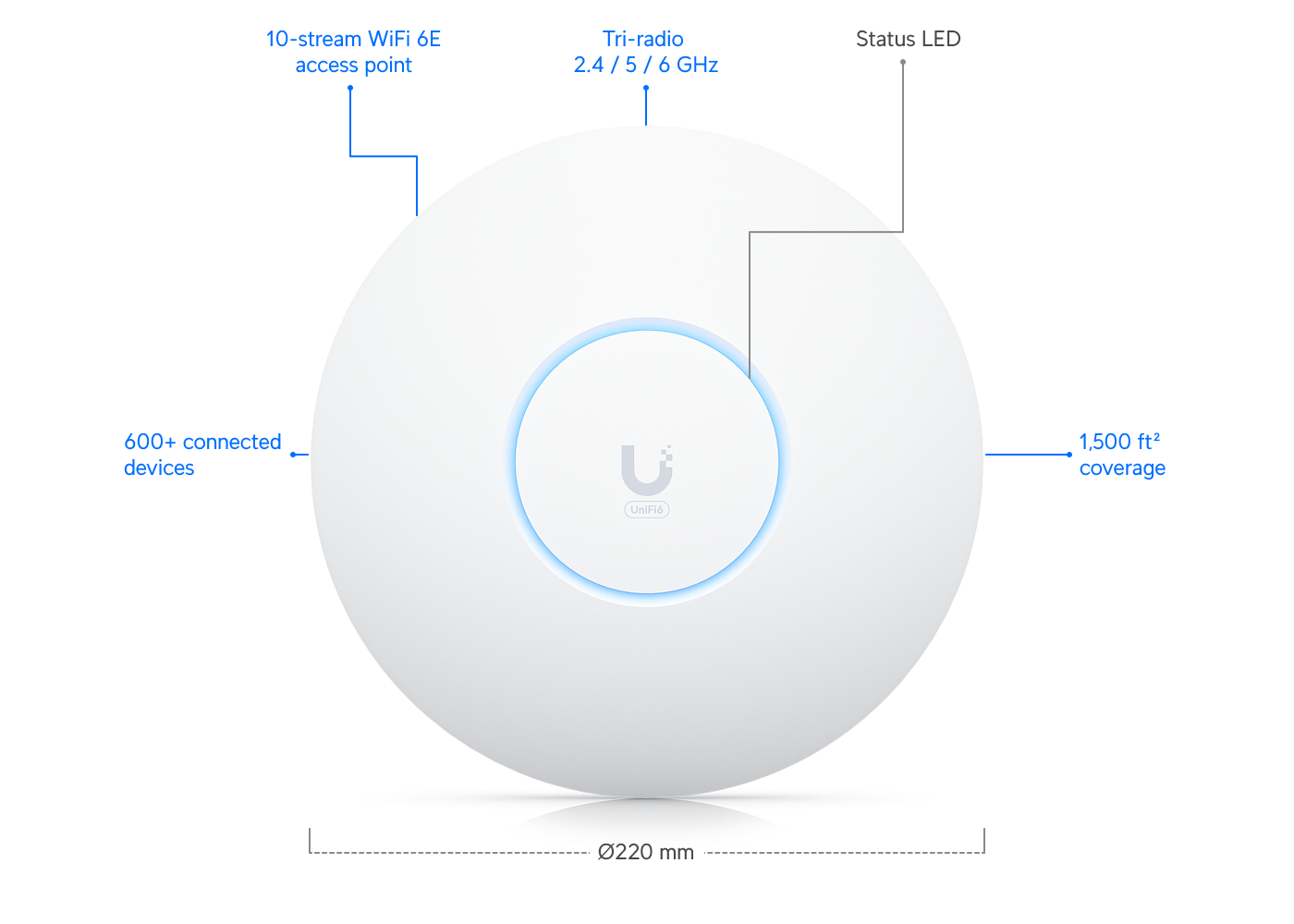

The U6-ENTERPRISE measures Ø220 x 48 mm and uses a polycarbonate top housing with an aluminium bottom housing. Its stainless steel (SUS304) mount and included wall/ceiling mounting option suit field installation. A single 2.5GbE RJ45 networking interface connects to the wired backbone; management is available through Ethernet and Bluetooth. The access point is powered by PoE+ and supports a 44—57V DC voltage range, with a maximum power consumption of 22W.
On the wireless side, the U6-ENTERPRISE provides 2 x 2 UL MU-MIMO on 2.4 GHz and 4 x 4 DL/UL MU-MIMO on 5 GHz and 6 GHz. Throughput rates are 573.5 Mbps on 2.4 GHz and 4.8 Gbps on both 5 GHz and 6 GHz. Antenna gain is 3.2 dBi on 2.4 GHz, 5.3 dBi on 5 GHz and 6 dBi on 6 GHz. Maximum TX power is 22 dBm on 2.4 GHz and 26 dBm on 5-7 GHz. WiFi 4/WiFi 5/WiFi 6/WiFi 6E standards, WPA-PSK and WPA-Enterprise (WPA/WPA2/WPA3) security, 8 BSSIDs per radio and 802.1Q VLAN support provide configuration flexibility for enterprise wireless networks.
For deployment, the U6-ENTERPRISE supports 600+ concurrent clients, Advanced QoS with per-user rate limiting, guest traffic isolation and Zero wait DFS. Its operating temperature range of -30 to 60° C and operating humidity of 5 to 95% noncondensing support a broad set of field and indoor conditions. It carries CE, FCC and IC certifications.
Key Highlights:
- 2.5GbE RJ45 networking interface and PoE+ power with 44—57V DC support
- 2.4 GHz 2 x 2 UL MU-MIMO; 5 GHz and 6 GHz 4 x 4 DL/UL MU-MIMO
- 573.5 Mbps on 2.4 GHz and 4.8 Gbps on 5 GHz and 6 GHz
- 600+ concurrent clients, 8 BSSIDs per radio and 802.1Q VLAN support
- WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) wireless security
- Wall/ceiling mount included; stainless steel (SUS304) mount material
Technical Specifications:
| Parameter | Value |
|---|---|
| Manufacturer | Ubiquiti |
| Model | U6-ENTERPRISE |
| Product Group | UniFi Access Point |

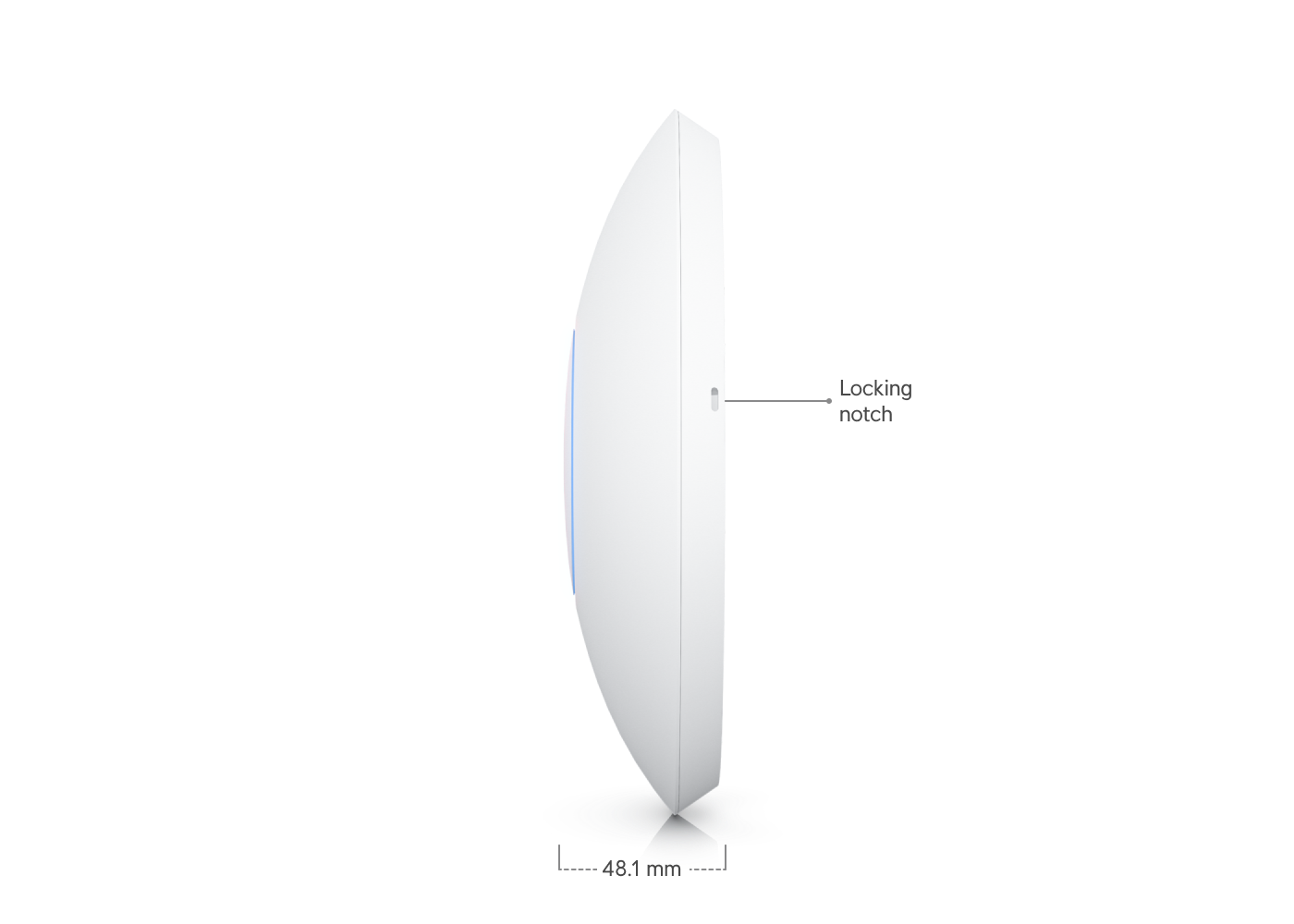

| Dimensions | Ø220 x 48 mm (Ø8.7 x 1.9") |
| Weight | Without mount: 960 g (2.1 lb); with mount: 1090 g (2.4 lb) |
| Enclosure Materials | Top housing: polycarbonate; bottom housing: aluminium |
| Mount Material | Stainless steel (SUS304) |

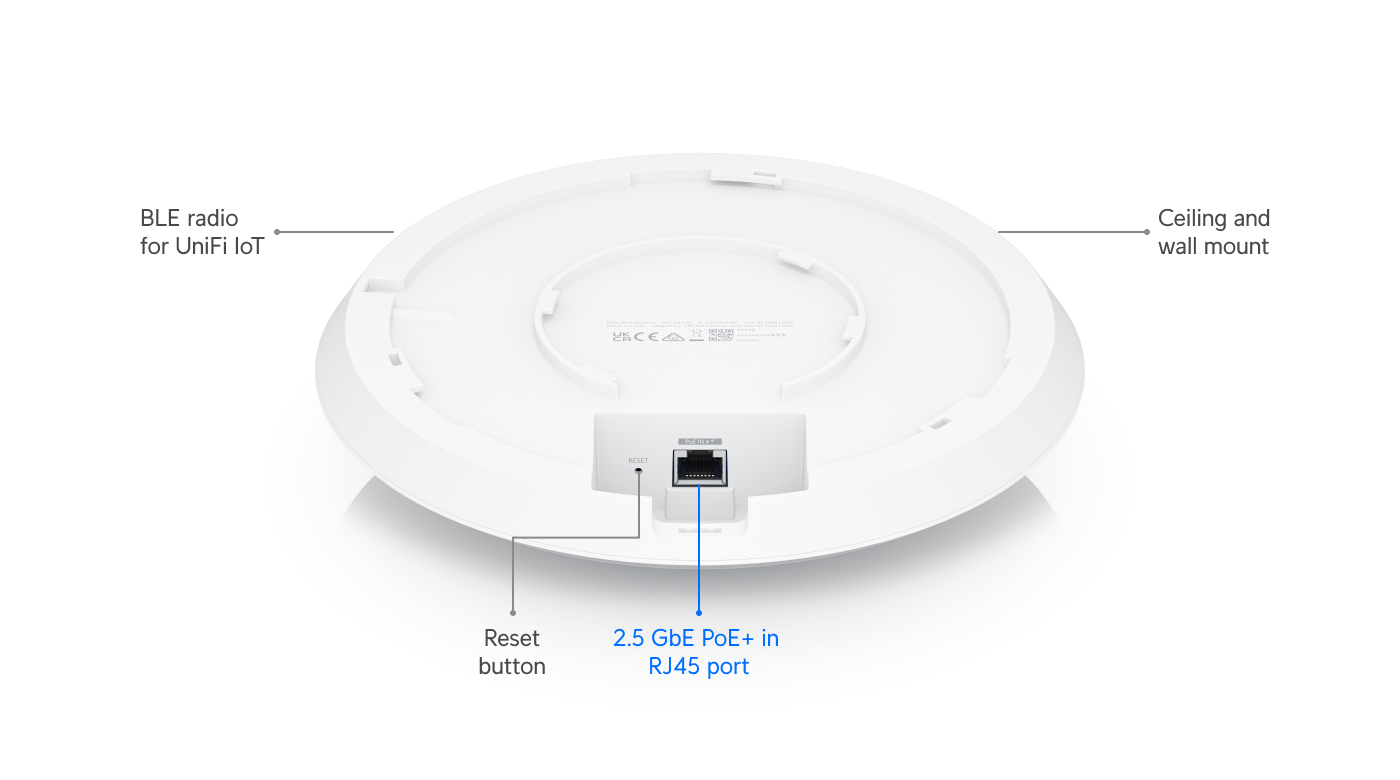

| Networking Interface | (1) 2.5GbE RJ45 port |
| Management Interface | Ethernet, Bluetooth |
| Power Method | PoE+ |
| Power Supply | UniFi PoE switch; 48V, 0.5A PoE adapter (optional) |
| Supported Voltage Range | 44—57V DC |
| Max. Power Consumption | 22W |
| Max. TX Power | 2.4 GHz: 22 dBm; 5-7 GHz: 26 dBm |
| MIMO | 2.4 GHz: 2 x 2 (UL MU-MIMO); 5 GHz: 4 x 4 (DL/UL MU-MIMO); 6 GHz: 4 x 4 (DL/UL MU-MIMO) |
| Throughput Rate | 2.4 GHz: 573.5 Mbps; 5 GHz: 4.8 Gbps; 6 GHz: 4.8 Gbps |
| Antenna Gain | 2.4 GHz: 3.2 dBi; 5 GHz: 5.3 dBi; 6 GHz: 6 dBi |
| LEDs | White/blue |
| Buttons | Reboot and factory reset |
| Mounting | Wall/ceiling (included) |
| Operating Temperature | -30 to 60° C (-22 to 140° F) |
| Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| WiFi Standards | 802.11a/b/g; WiFi 4/WiFi 5/WiFi 6/WiFi 6E |
| Wireless Security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest Traffic Isolation | Supported |
| Concurrent Clients | 600+ |
| Zero Wait DFS | Yes |
| 802.11a Data Rates | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b Data Rates | 1, 2, 5.5, 11 Mbps |
| 802.11g Data Rates | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n (WiFi 4) | 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| 802.11ax (WiFi 6/6E) | 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
