Ubiquiti UniFi Access Point U6 In-Wall (U6-IW)

Ubiquiti U6-IW In-Wall Wi-Fi 6 Access Point

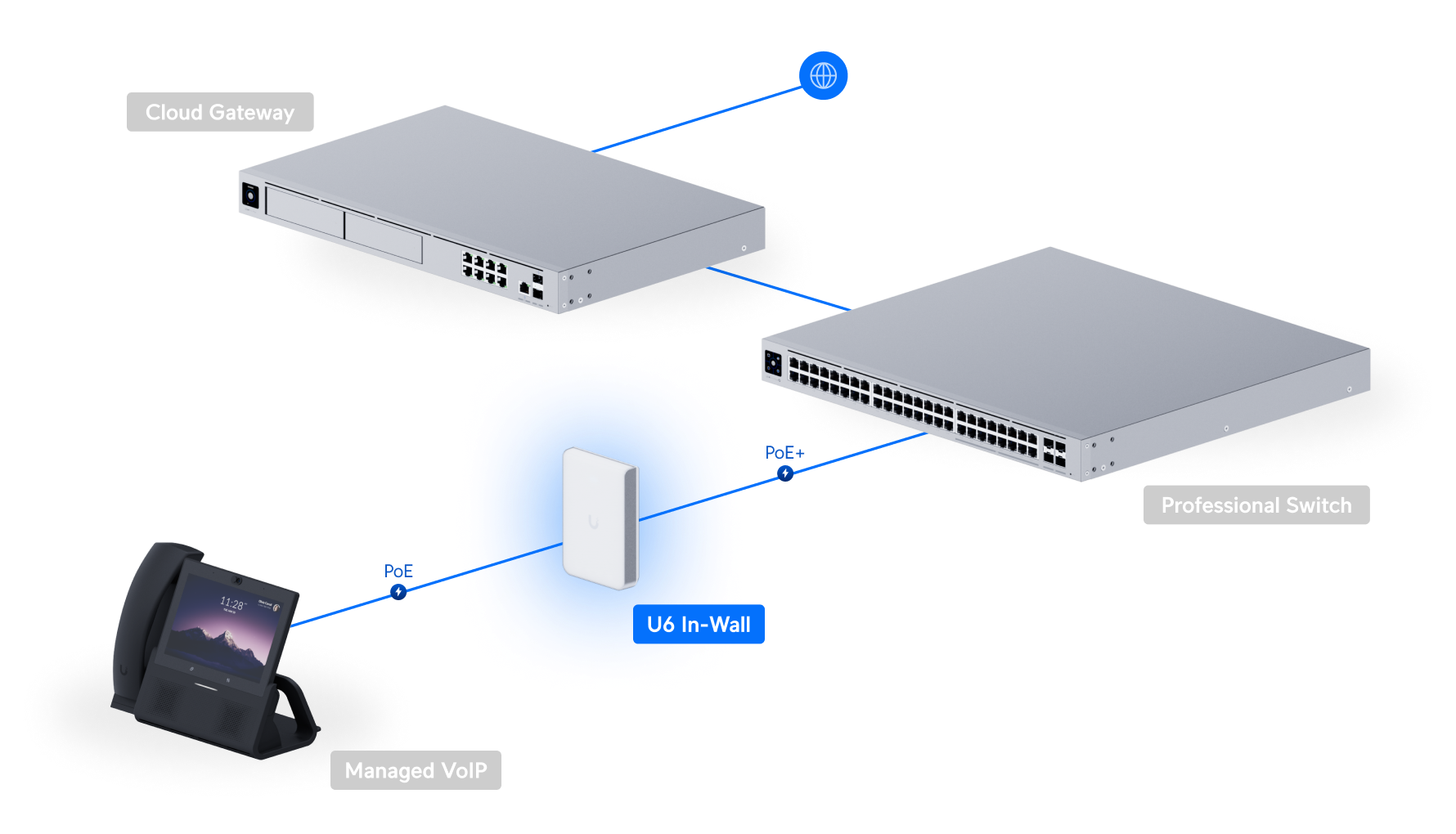

Overview: An in-wall Wi-Fi 6 access point that combines wired and wireless access for hotel rooms, offices, and SMB environments. Four GbE data-out ports and PoE output help consolidate connectivity at the wall location.

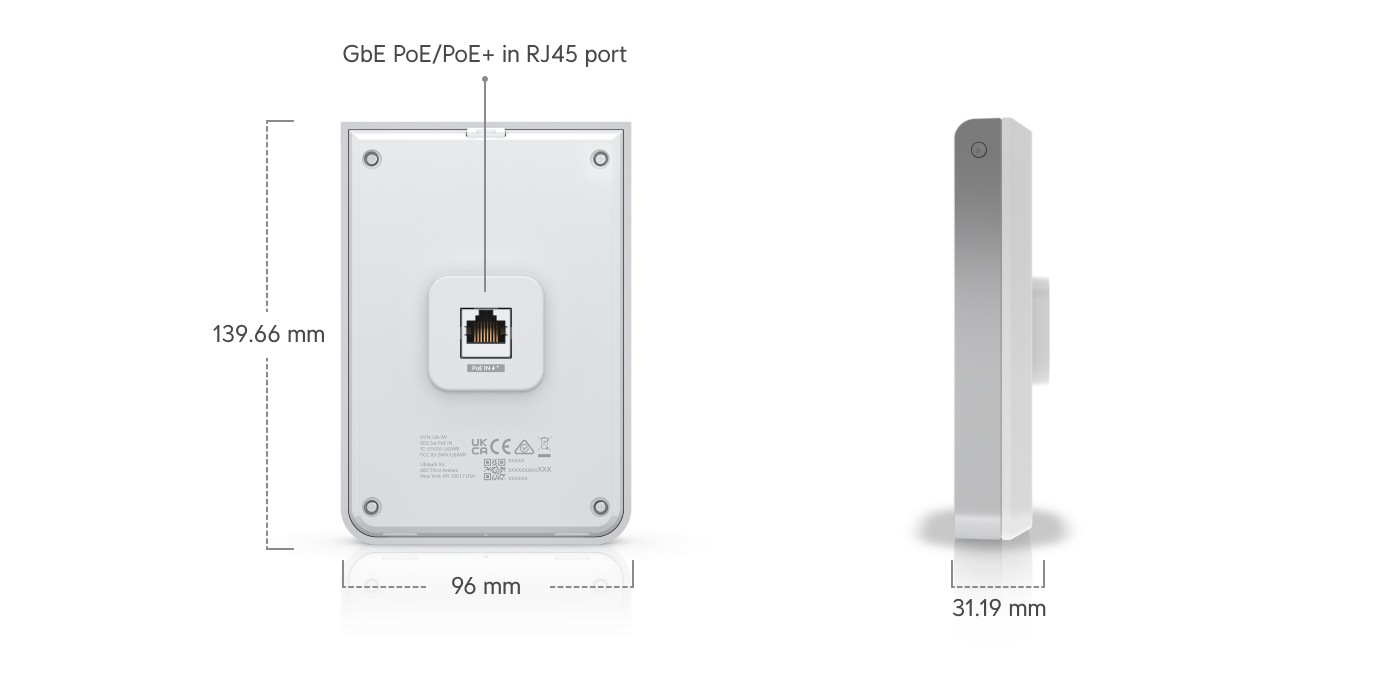

Description: The U6-IW measures 139.6 x 96 x 31.2 mm and weighs 460 g, with a polycarbonate and aluminum enclosure and an aluminum mount. The networking interface includes one GbE RJ45 data-in port and four GbE RJ45 data-out ports. Management is provided via Ethernet and Bluetooth interfaces. The device offers PoE in and PoE out; PoE output requires a PoE+ switch. It can be powered by a UniFi PoE switch or an optional 48V, 0.5A PoE adapter. Maximum power consumption is 13.5W excluding PoE output, and maximum PoE wattage per port by PSE is 15.4W with a PoE+ switch. The PoE mode voltage range is 44—57V DC.
On the wireless side, the U6-IW supports Wi-Fi 6 with 2.4 GHz 2 x 2 UL MU-MIMO and 5 GHz 4 x 4 DL/UL MU-MIMO. Throughput reaches 573.5 Mbps on 2.4 GHz and 4.8 Gbps on 5 GHz. Maximum TX power is 22 dBm on 2.4 GHz and 26 dBm on 5 GHz; antenna gain is 5 dBi and 5.9 dBi respectively. It supports 300+ concurrent clients, 8 BSSIDs per radio, 802.1Q VLAN, per-user rate limiting, and guest traffic isolation. Zero-wait DFS is supported.
The device operates from -30 to 60° C and 5 to 95% noncondensing humidity. It carries CE, FCC, and IC certifications. With its in-wall form factor and integrated GbE ports, it is suitable for connecting wired endpoints and wireless clients through the same access point in hotel, office, and SMB locations.
Key Highlights:
- Wi-Fi 6 support with 2.4 GHz 2 x 2 UL MU-MIMO and 5 GHz 4 x 4 DL/UL MU-MIMO
- Up to 573.5 Mbps on 2.4 GHz and 4.8 Gbps on 5 GHz

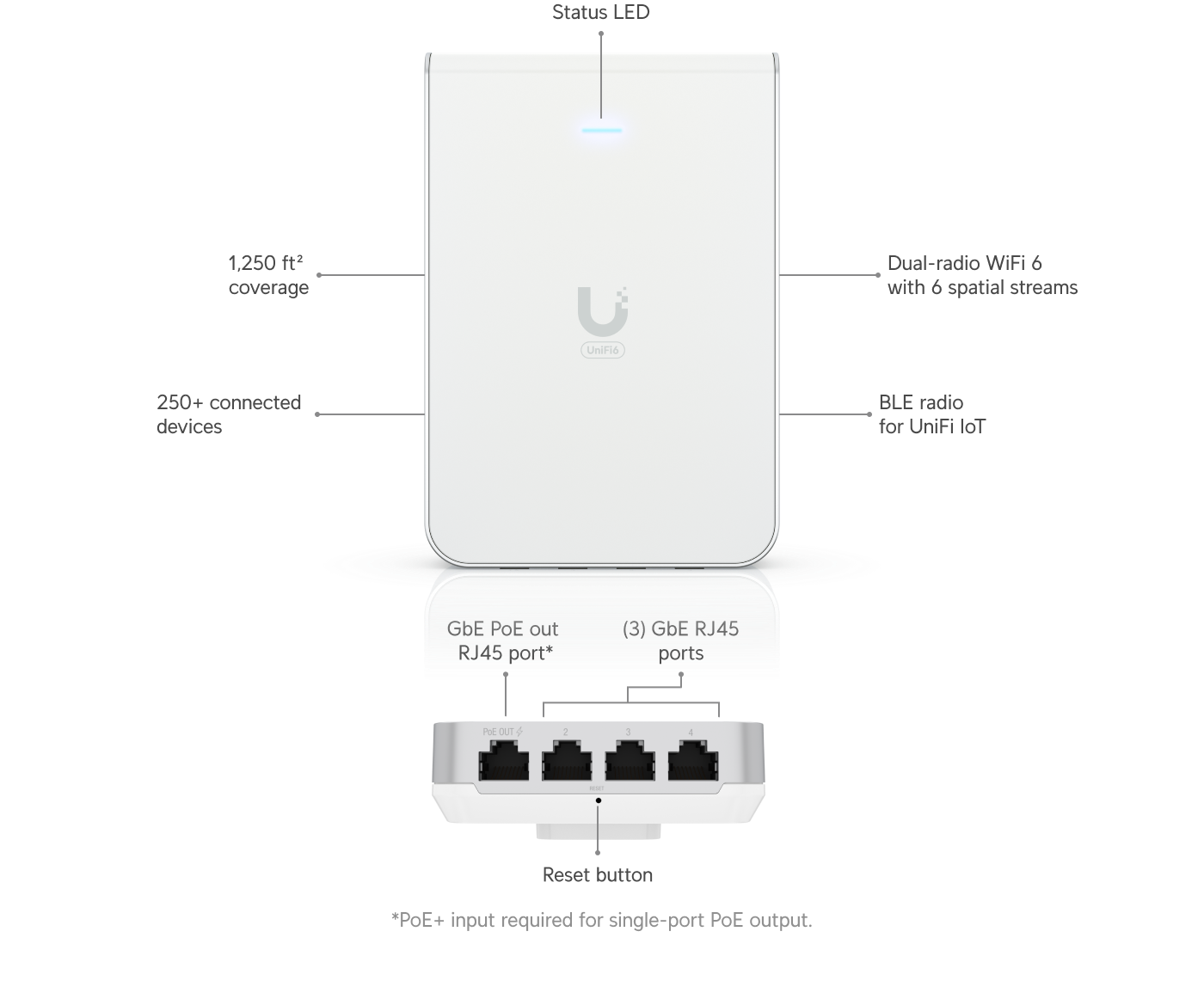

- One GbE RJ45 data-in and four GbE RJ45 data-out ports
- One PoE in and one PoE out; PoE output requires a PoE+ switch
- 300+ concurrent clients, 8 BSSIDs per radio, and 802.1Q VLAN
- -30 to 60° C operating temperature, aluminum mount, polycarbonate/aluminum enclosure
Technical Specifications:
| Parameter | Value |
|---|---|
| Manufacturer | Ubiquiti |
| Model | U6-IW |
| Product Group | UniFi Access Point |
| Dimensions | 139.6 x 96 x 31.2 mm (5.5 x 3.8 x 1.3 in) |
| Weight | 460 g (1 lb) |
| Enclosure Materials | Polycarbonate, aluminum |
| Mount Material | Aluminum |
| Networking Interface | (1) GbE RJ45 port (Data in); (4) GbE RJ45 ports (Data out) |
| Management Interface | Ethernet, Bluetooth |
| PoE Interface | (1) PoE in; (1) PoE out |
| Power Method | PoE; PoE+ (Required for PoE output) |
| Power Supply | UniFi PoE switch; 48V, 0.5A PoE adapter (optional) |
| Max. Power Consumption | 13.5W (Excluding PoE output) |
| Max. PoE Wattage per Port by PSE | 15.4W (Requires a PoE+ switch) |
| Voltage Range PoE Mode | 44—57V DC |
| Max. TX Power 2.4 GHz | 22 dBm |
| Max. TX Power 5 GHz | 26 dBm |
| MIMO 2.4 GHz | 2 x 2 (UL MU-MIMO) |
| MIMO 5 GHz | 4 x 4 (DL/UL MU-MIMO) |
| Throughput 2.4 GHz | 573.5 Mbps |
| Throughput 5 GHz | 4.8 Gbps |
| Antenna Gain 2.4 GHz | 5 dBi |
| Antenna Gain 5 GHz | 5.9 dBi |
| LED | White/blue |
| Button | Factory reset |
| Operating Temperature | -30 to 60° C (-22 to 140° F) |
| Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Wi-Fi Standards | 802.11a/b/g; Wi-Fi 4/Wi-Fi 5/Wi-Fi 6 |
| Wireless Security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest Traffic Isolation | Supported |
| Concurrent Clients | 300+ |
| Zero-wait DFS | Yes |
| Supported Data Rates | 802.11a: 6–54 Mbps; 802.11b: 1–11 Mbps; 802.11g: 6–54 Mbps; 802.11n (Wi-Fi 4): 6.5 Mbps–600 Mbps; 802.11ac (Wi-Fi 5): 6.5 Mbps–3.4 Gbps; 802.11ax (Wi-Fi 6): 7.3 Mbps–4.8 Gbps |
