Ubiquiti UniFi Access Point AC Mesh Pro 5-Pack (UAP-AC-M-Pro-5)

Ubiquiti UAP-AC-MESH PRO 5 PACK UniFi Access Point
Overview: The UAP-AC-MESH PRO 5 PACK is a five-pack of UAP-AC-M-PRO outdoor mesh access points. It delivers wide-area, high-performance Wi-Fi coverage for high-density outdoor environments such as campuses, parks, and event venues.
Description: The UAP-AC-MESH PRO 5 PACK bundles five UAP-AC-M-PRO access points. Each unit features 3x3 MIMO technology, operating simultaneously on 2.4 GHz and 5 GHz bands with speeds up to 1300 Mbps in the 5 GHz band. Built-in dual-band omnidirectional antennas (8 dBi) provide extended coverage. The weather-resistant enclosure and operating temperature range of -40°C to 70°C ensure reliable performance in harsh outdoor conditions.

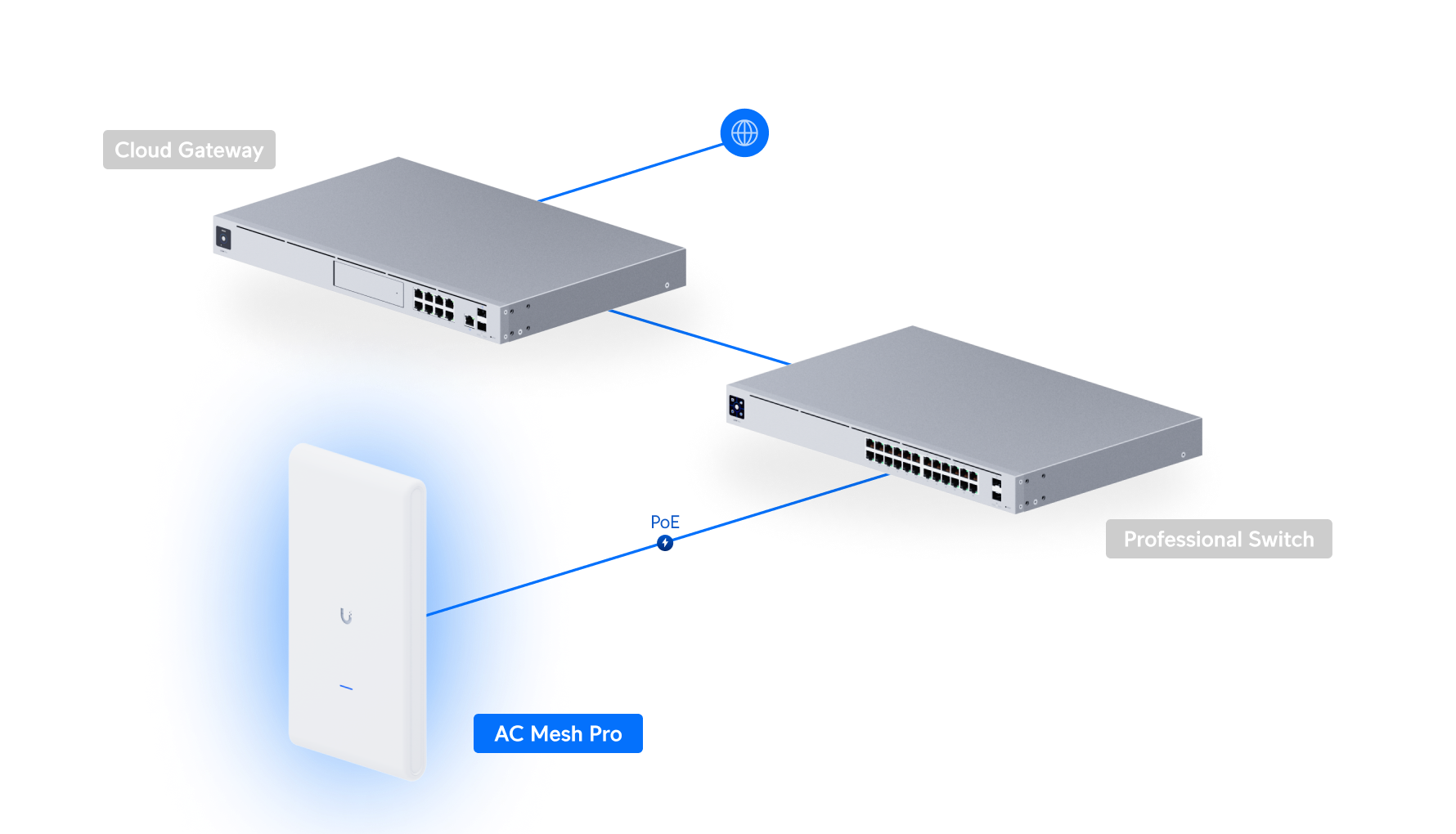

Dual Gigabit Ethernet ports allow the primary port for data and PoE, while the secondary port can be used for bridging. 802.3af PoE support enables powering via standard PoE switches. Note: Five-packs do not include PoE adapters; powering via a UniFi PoE Switch is recommended.
The UniFi Controller software provides centralized management, RF mapping, guest portal, hotspot, multi-site management, and more. Plug & Play Mesh technology enables wireless uplink for network expansion; one wired uplink supports up to four wireless downlinks on a single band. Multi-hop mesh allows wirelessly uplinked APs to provide uplink to other wirelessly uplinked APs.
Key Highlights:

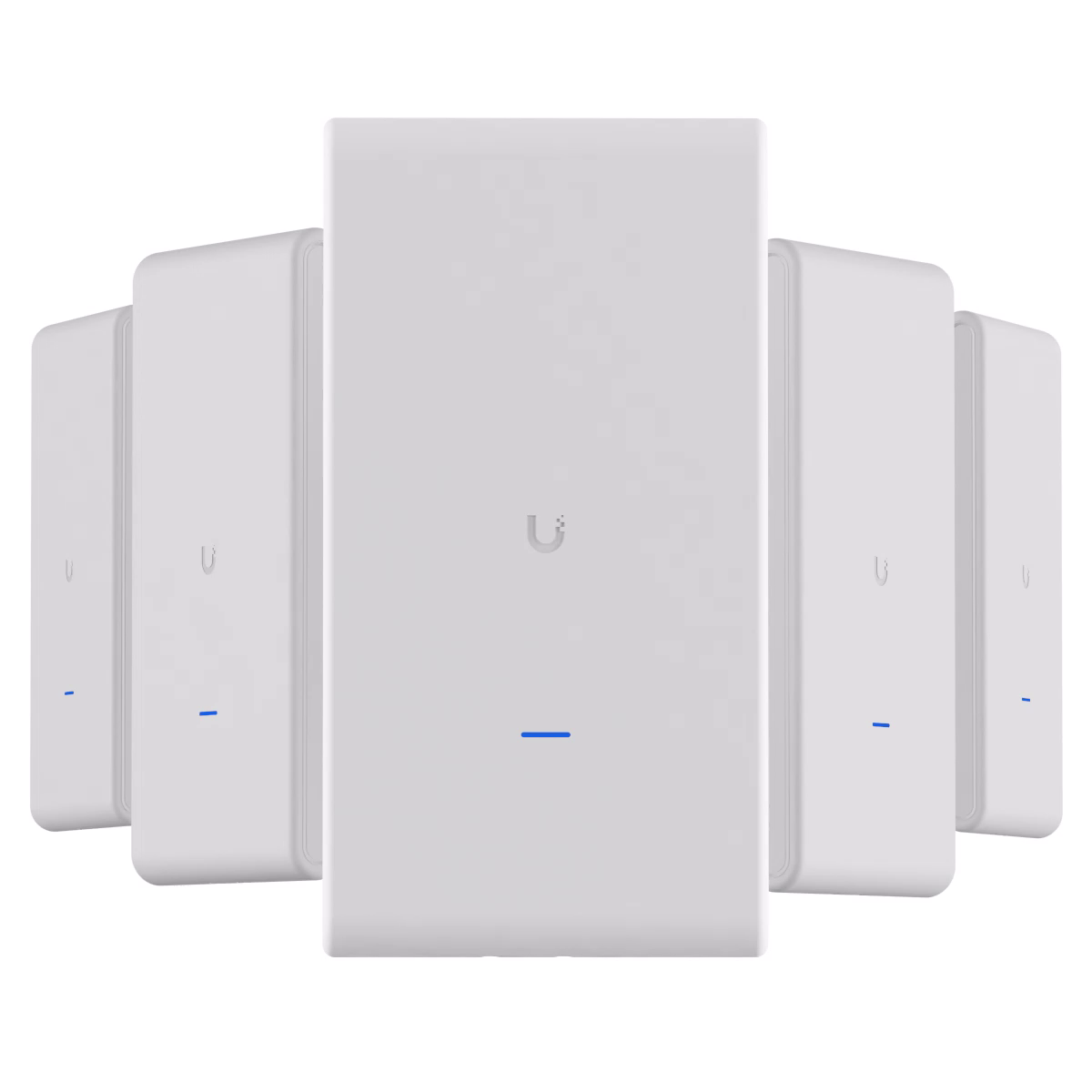

- Includes five UAP-AC-M-PRO outdoor access points.
- 3x3 MIMO with up to 1300 Mbps in the 5 GHz band.
- Built-in dual-band omnidirectional antennas (8 dBi).

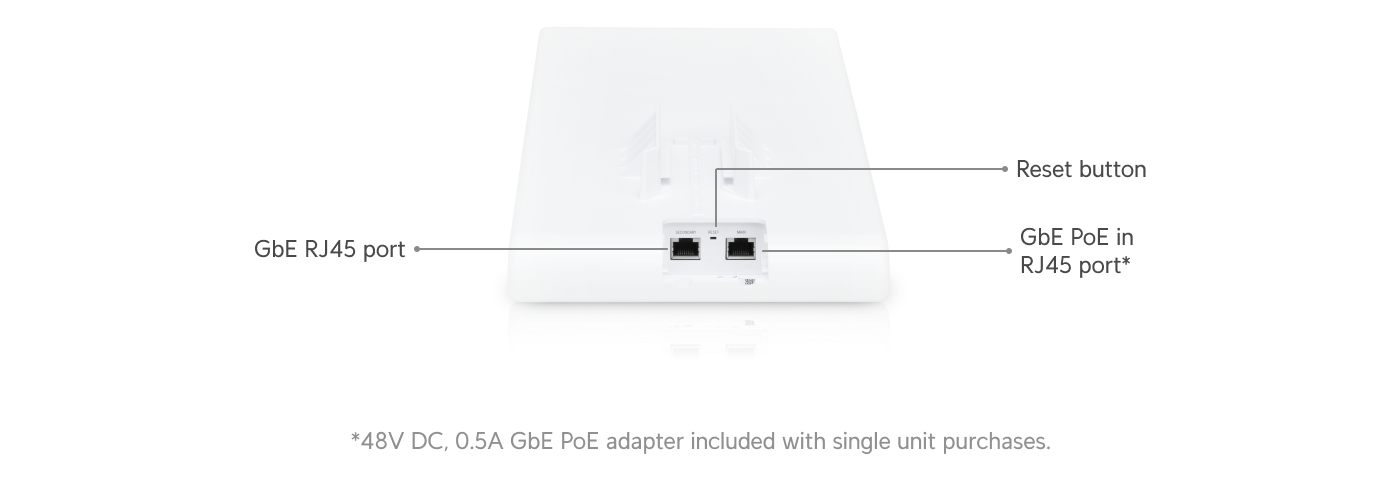

- Dual Gigabit Ethernet ports (primary: data+PoE, secondary: bridging).
- 802.3af PoE support (44-57 VDC).
- Weather-resistant enclosure, operating temperature -40°C to 70°C.
Technical Specifications:
| Parameter | Value |
|---|---|
| Manufacturer | Ubiquiti |
| Model | UAP-AC-MESH PRO 5 PACK |
| Product Group | UniFi Access Point |

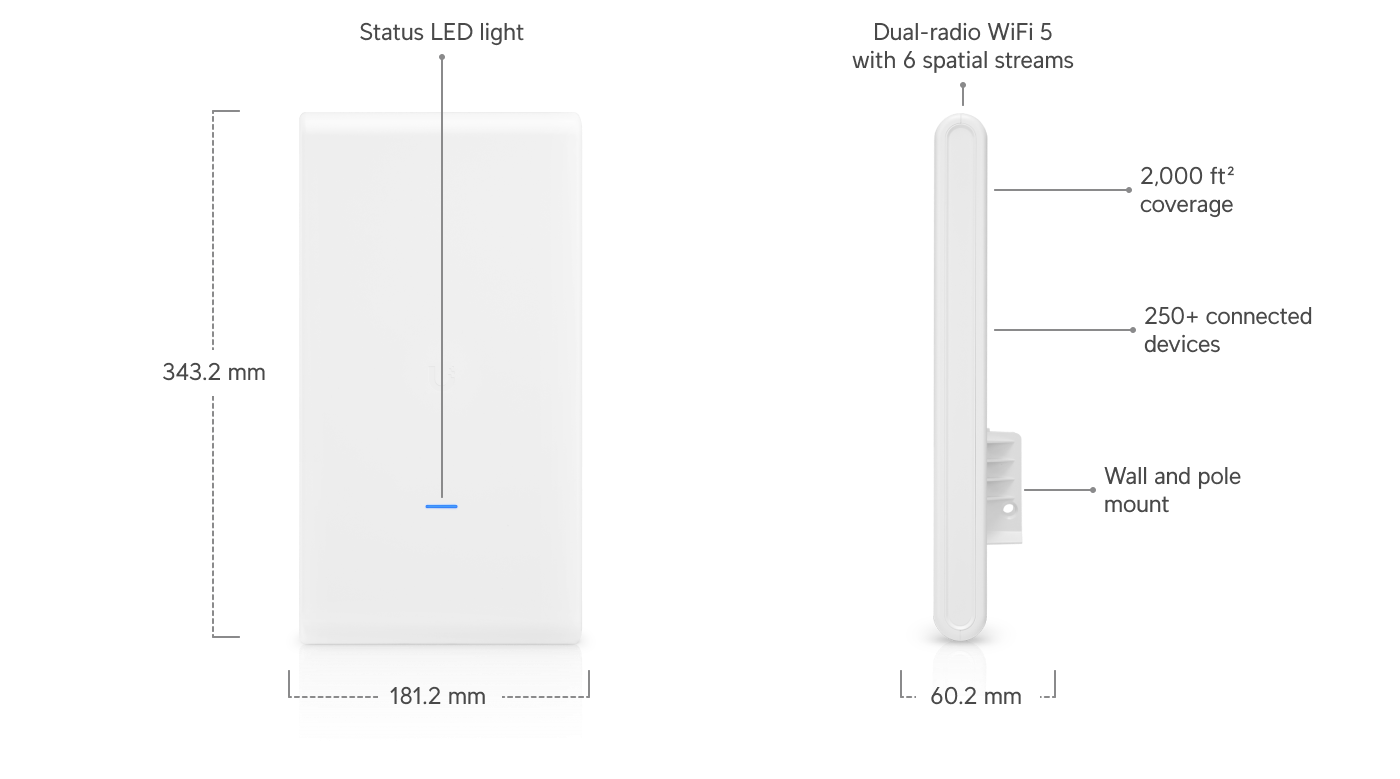

| Dimensions | 343.2 x 181.2 x 60.2 mm |
| Weight | 633 g |
| Networking Interface | (2) 10/100/1000 Ethernet Ports |
| Power Method | 802.3af PoE (44-57 VDC) |
| Maximum Power Consumption | 9W |
| Maximum TX Power (2.4 GHz) | 22 dBm |
| Maximum TX Power (5 GHz) | 22 dBm |
| Antennas | (3) Internal Dual-Band Antennas, 8 dBi |
| MIMO | 3x3 (2.4 GHz and 5 GHz) |
| Wi-Fi Standards | 802.11 a/b/g/n/r/k/v/ac |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| Mounting | Wall/Pole (Pole Kit Included) |
| Operating Temperature | -40 to 70° C |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
| Concurrent Clients | 250+ |
