Ubiquiti UniFi Access Point U6 Mesh Pro (U6-Mesh-Pro)

Ubiquiti UniFi Access Point U6 Mesh Pro (U6-Mesh-Pro)
Click to enlarge
Ubiquiti UniFi Access Point U6 Mesh Pro (U6-Mesh-Pro) view 1
Ubiquiti UniFi Access Point U6 Mesh Pro (U6-Mesh-Pro) view 2
Ubiquiti UniFi Access Point U6 Mesh Pro (U6-Mesh-Pro) view 3
Ubiquiti UniFi Access Point U6 Mesh Pro (U6-Mesh-Pro) view 4
Ubiquiti UniFi Access Point U6 Mesh Pro (U6-Mesh-Pro) view 5
Ubiquiti UniFi Access Point U6 Mesh Pro (U6-Mesh-Pro) view 6
Ubiquiti

SKU: ST01573

UniFi Access Points
Outdoor APs & Bridges
Outdoor AP & Mesh Systems

Estimated Shipping Time

1-3 business days

Min. Order

1 pieces

Ubiquiti U6-Mesh-Pro Outdoor WiFi 6 Access Point

Overview: The Ubiquiti U6-Mesh-Pro is an IPX6-rated WiFi 6 outdoor access point built for WISPs and organizations that need coverage beyond the wiring closet. With 185 m² of coverage, 250+ client capacity and wireless meshing support, it is positioned as the access layer for open areas, terraces, campuses and field deployments.

Description: The U6-Mesh-Pro is built on a dual-radio WiFi 6 (802.11ax) architecture running 4 spatial streams. Both radios support 2x2 DL/UL MU-MIMO, delivering up to 2.4 Gbps on 5 GHz with 160 MHz channel width and up to 573.5 Mbps on 2.4 GHz with 40 MHz channel width. With 8 dBi antenna gain on both bands and maximum TX power of 27 dBm (5 GHz) and 22 dBm (2.4 GHz), it maintains a balanced link budget for longer-range outdoor links. The enclosure is UV-stabilized polycarbonate with an aluminum alloy and steel mount, and the unit is rated for operating temperatures from -30 to 60 °C at 5–95% noncondensing humidity.

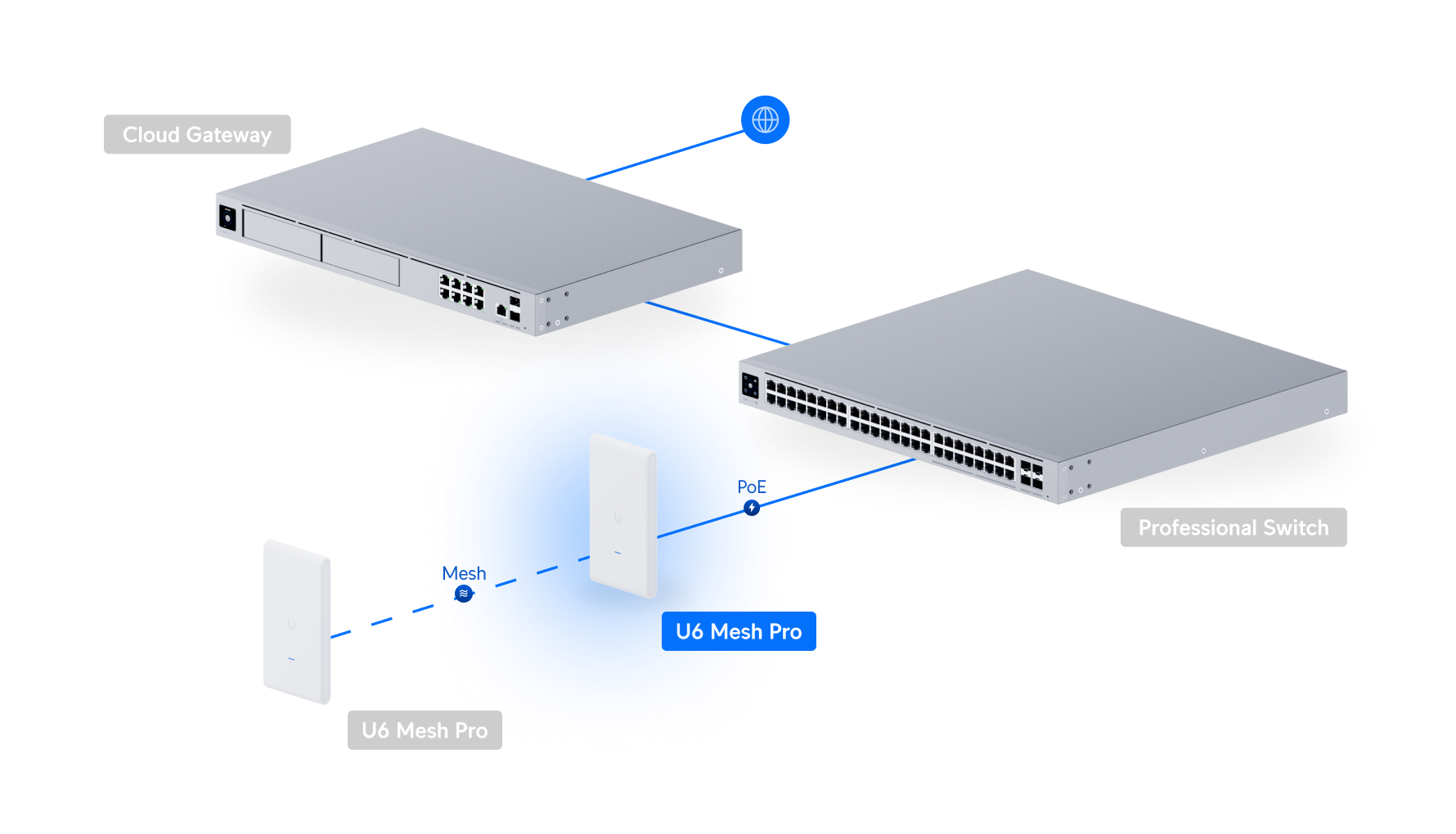

The device is managed through the UniFi Network control plane (version 8.1.127 and later) over Ethernet or WiFi. Band steering, 802.11k RRM, 802.11v BSS transition management and 802.11r fast roaming let clients move between access points without re-association friction, while wireless meshing allows uplinks at locations where cabling is not feasible. Guest network isolation, Private Pre-Shared Key (PPSK), client device isolation, WiFi speed limiting and WiFi schedules provide policy-based segmentation.

For enterprise guest access, the U6-Mesh-Pro offers a captive hotspot portal with custom branding landing page, voucher and payment-based authentication, external portal server support, password authentication, Passpoint (Hotspot 2.0), and RADIUS over TLS (RadSec) with dynamic RADIUS-assigned VLAN. Two GbE RJ45 ports, a 42.5–57V DC PoE input range and 9W maximum power consumption allow it to be powered from standard PoE switches, while the included PoE adapter enables deployment where no PoE infrastructure exists. It mounts to a wall or to poles with a 1–2.5" (25–63.5 mm) diameter using the included hardware, and NDAA compliance with CE, FCC and IC certifications supports procurement in public sector and regulated projects.

Key Highlights:

  • Dual-radio WiFi 6 (802.11ax) design with 4 spatial streams and 2x2 DL/UL MU-MIMO on both bands
  • Up to 2.4 Gbps on 5 GHz at 160 MHz channel width and 573.5 Mbps on 2.4 GHz at 40 MHz
  • 8 dBi antenna gain on both bands with 27 dBm (5 GHz) and 22 dBm (2.4 GHz) maximum TX power
  • IPX6 weatherproofing and an operating temperature range of -30 to 60 °C for demanding outdoor sites
  • 185 m² coverage and 250+ clients, with wireless meshing, band steering and 802.11k/v/r support
  • 9W maximum power consumption, 42.5–57V DC PoE input and a PoE adapter included in the box

Technical Specifications:

ParameterValue
ManufacturerUbiquiti
ModelU6-Mesh-Pro
Product GroupOutdoor Access Point
WiFi StandardWiFi 6 (802.11ax)
Spatial Streams4
MIMO5 GHz: 2x2 (DL/UL MU-MIMO) · 2.4 GHz: 2x2 (DL/UL MU-MIMO)
Max. Data Rate (5 GHz)2.4 Gbps (BW160)
Max. Data Rate (2.4 GHz)573.5 Mbps (BW40)
Antenna Gain (5 GHz)8 dBi
Antenna Gain (2.4 GHz)8 dBi
Max. TX Power (5 GHz)27 dBm
Max. TX Power (2.4 GHz)22 dBm
Channel BandwidthHT 20/40, VHT 20/40/80/160, HE 20/40/80/160 MHz
Max. BSSIDs8 per radio
Coverage Area185 m² (2,000 ft²)
Max. Client Count250+

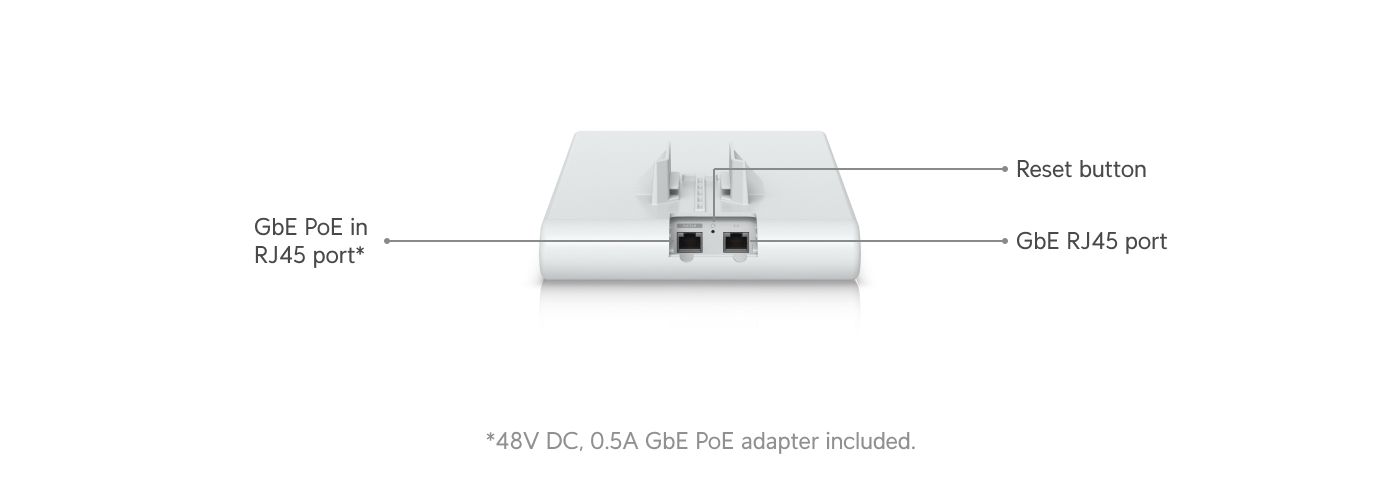

Networking Interface(2) GbE RJ45 ports
Power MethodPoE (PoE adapter included)
Supported Voltage Range42.5–57V DC
Max. Power Consumption9W
WeatherproofingIPX6
MountingWall, Pole (mounts included)
Pole Mount Diameter1–2.5" (25–63.5 mm)
Enclosure MaterialUV-stabilized polycarbonate
Mount MaterialAluminum alloy, steel
Operating Frequency2400–2483.5 MHz; 5150–5850 MHz (worldwide)
Ambient Operating Temperature-30 to 60 °C (-22 to 140 °F)
Ambient Operating Humidity5 to 95% noncondensing
ManagementEthernet, WiFi
Management PlatformUniFi Network version 8.1.127 and later
NDAA CompliantYes
CertificationsCE, FCC, IC, Anatel: 06377-24-08356

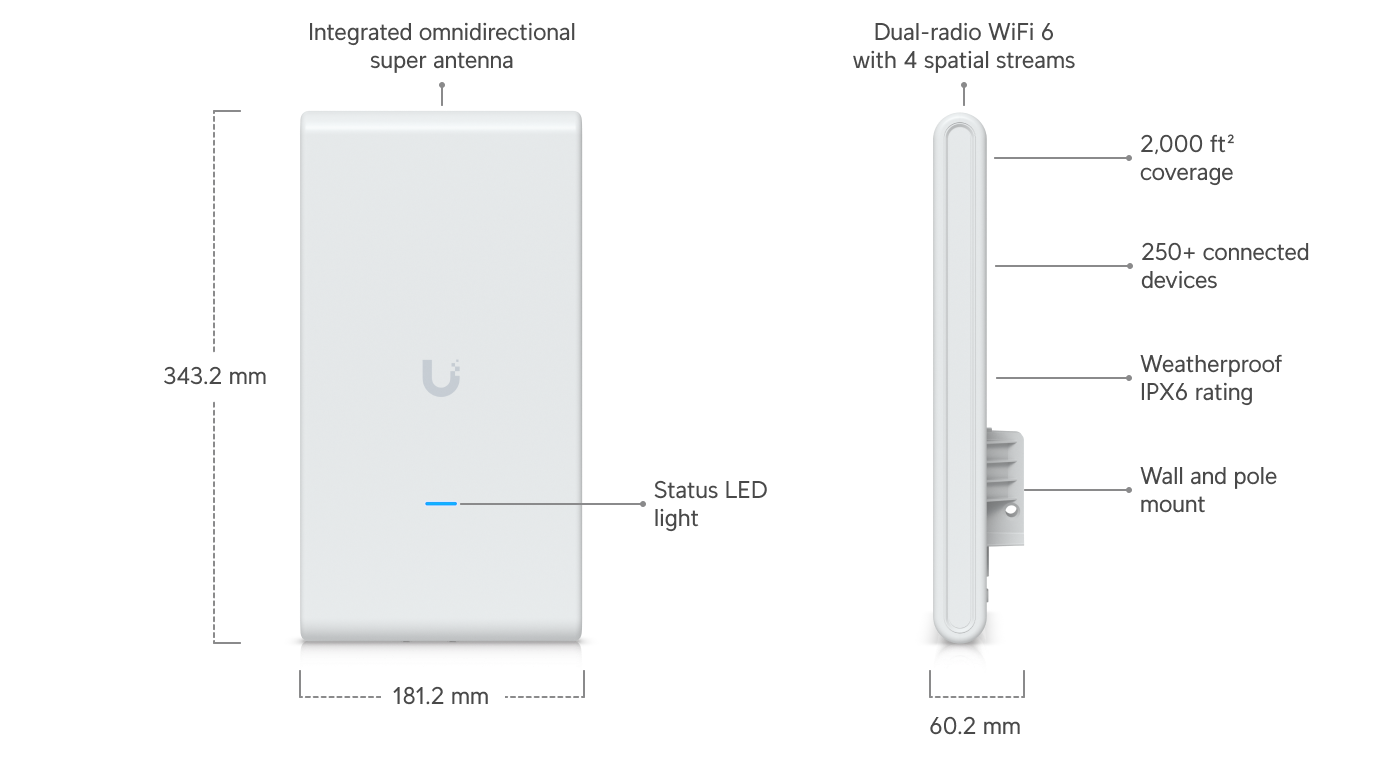

Dimensions343.2 x 181.2 x 60.2 mm
Weight819 g
