Ubiquiti UniFi Access Point U7 Pro Outdoor (U7-Pro-Outdoor)

Ubiquiti U7-Pro-Outdoor WiFi 7 Outdoor Access Point
Overview: The Ubiquiti U7-Pro-Outdoor is an IP67-rated outdoor access point built for campus and open-area WiFi 7 deployments. It combines a 2.5 GbE uplink with PoE+ power to simplify field cabling and power delivery.
Description: The U7-Pro-Outdoor uses a WiFi 7 tri-radio architecture covering 2.4 / 5 / 6 GHz with 6 spatial streams. Extended-range AFC support on 6 GHz positions it for high-capacity outdoor wireless coverage, while a 300+ connected-device rating addresses multi-client loads in campus and field scenarios.
Its IP67 enclosure is designed for outdoor conditions. A single 2.5 GbE RJ45 uplink supports the higher data path required by WiFi 7 at the network edge, and PoE+ power reduces the need for a separate power run. Wall and pole mounting options provide flexibility for building exteriors, poles, and outdoor sites.
Dimensions are 170 x 208 x 66.5 mm without mount and 170 x 208 x 121.8 mm with mount. The U7-Pro-Outdoor is suited to campus outdoor zones and open-field wireless access deployments requiring high-capacity WiFi 7 outdoor coverage.
Key Highlights:
- WiFi 7 tri-radio: 2.4 / 5 / 6 GHz support
- 6 spatial streams with 6 GHz extended-range AFC support
- 300+ connected-device capacity

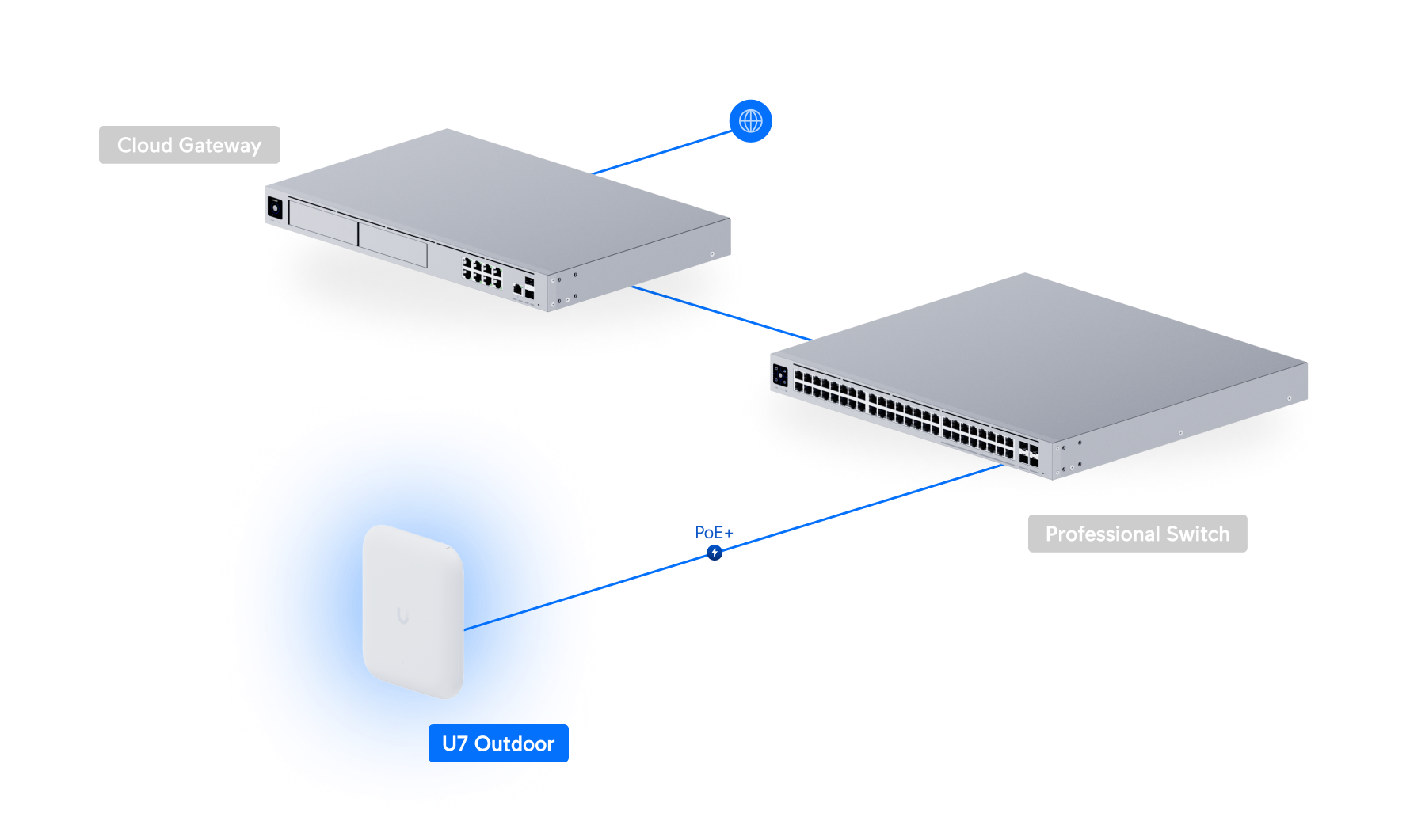

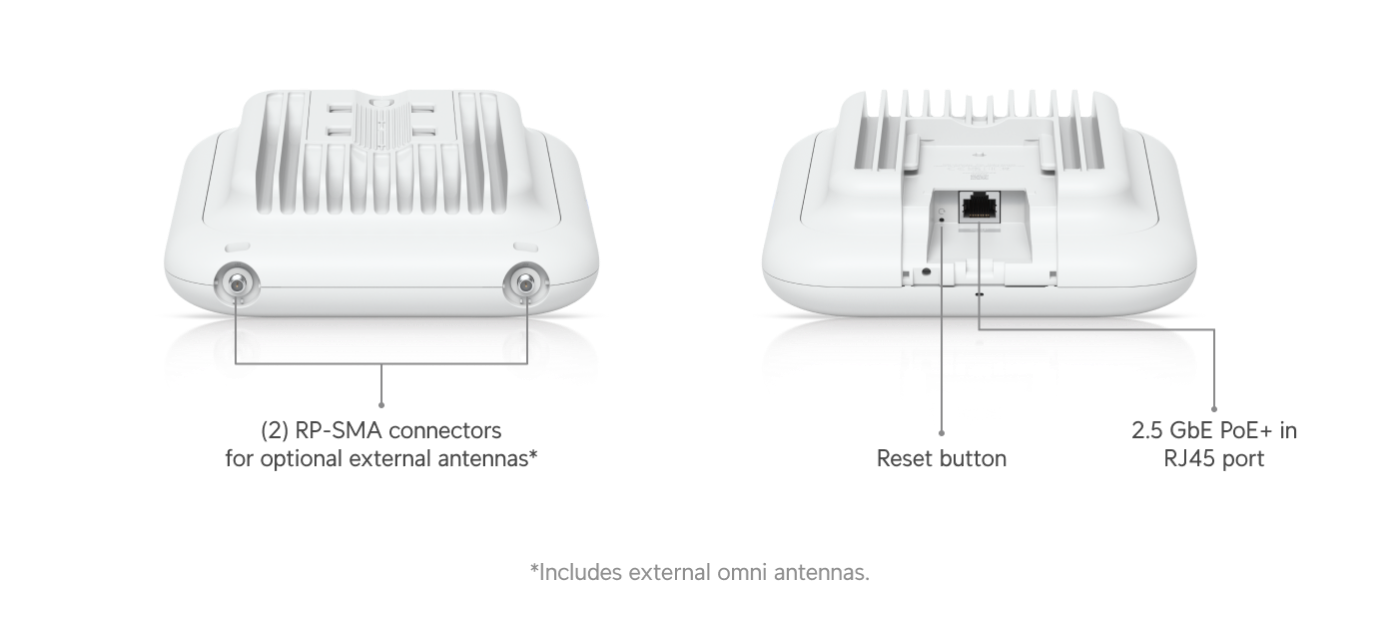

- 1x 2.5 GbE RJ45 uplink and PoE+ power
- IP67 outdoor protection rating

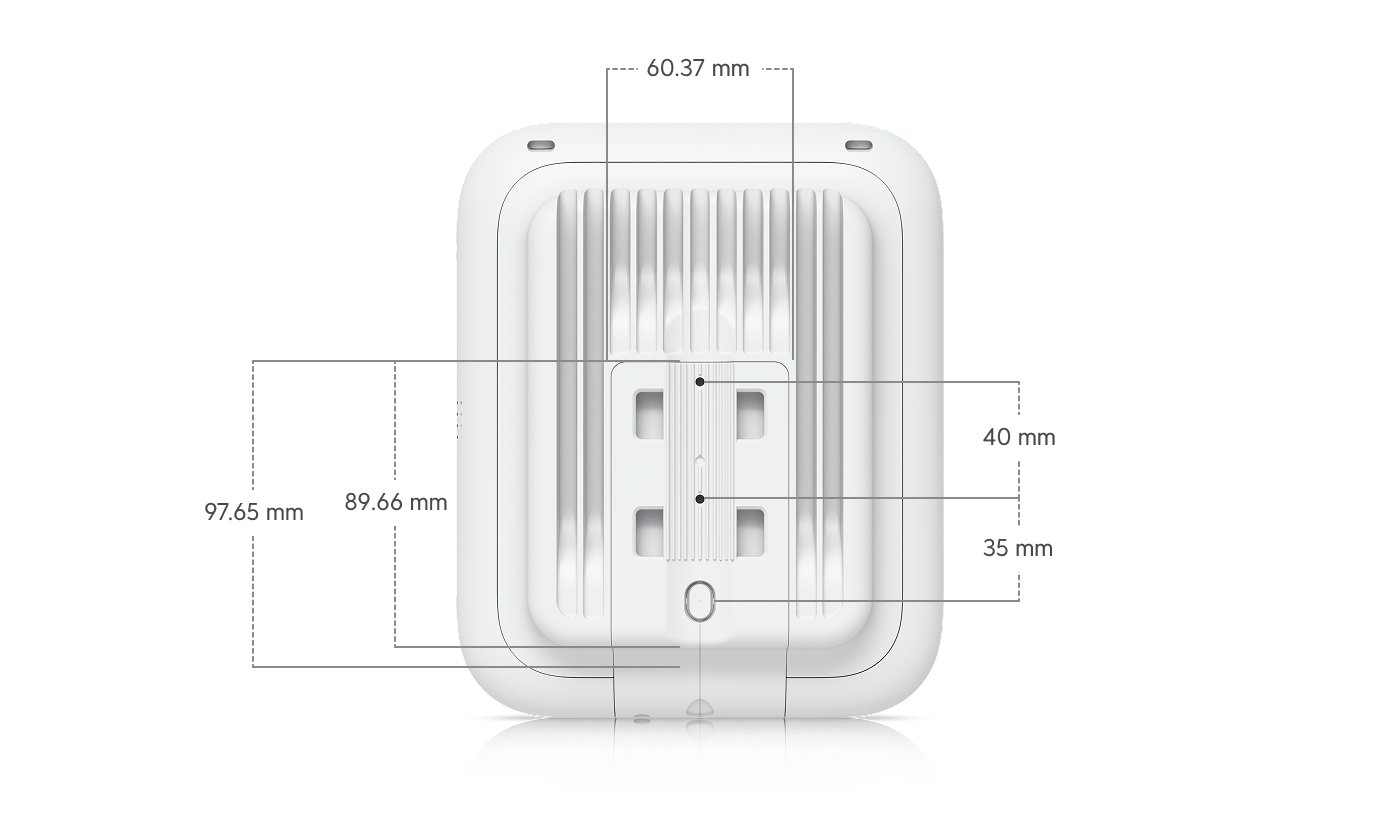

- Wall and pole mounting
Technical Specifications:
| Parameter | Value |
|---|---|
| Manufacturer | Ubiquiti |
| Model | U7-Pro-Outdoor |
| Product Group | Outdoor Access Point |
| WiFi Technology | WiFi 7, tri-radio 2.4 / 5 / 6 GHz (6 GHz on US & CA version) |
| Spatial Streams | 6 spatial streams |
| 6 GHz Support | Extended-range AFC 6 GHz (US & CA version) |
| Connected Devices | 300+ |
| Uplink | 1x 2.5 GbE RJ45 |
| Power Method | PoE+ |
| Weatherproofing | IP67 |
| Mounting | Wall, pole |

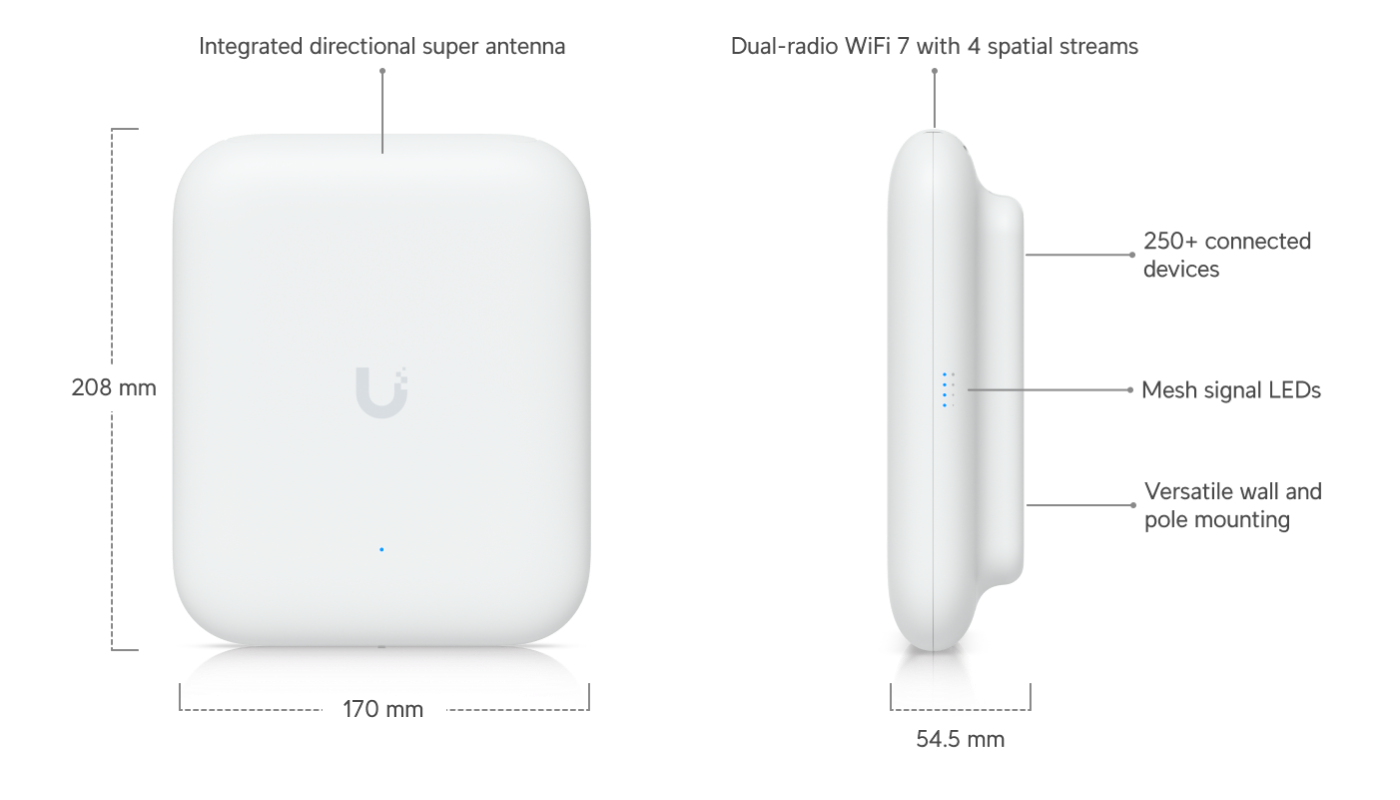

| Dimensions (without mount) | 170 x 208 x 66.5 mm |
| Dimensions (with mount) | 170 x 208 x 121.8 mm |
